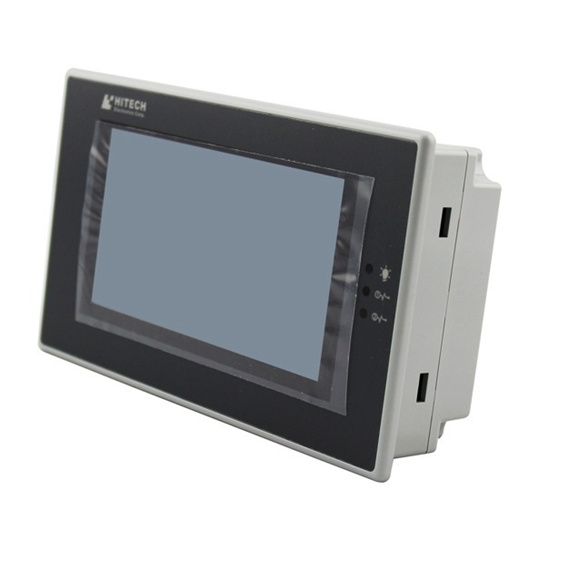

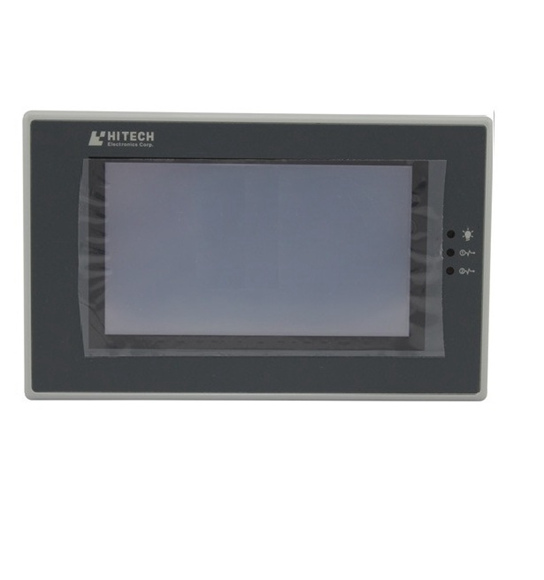

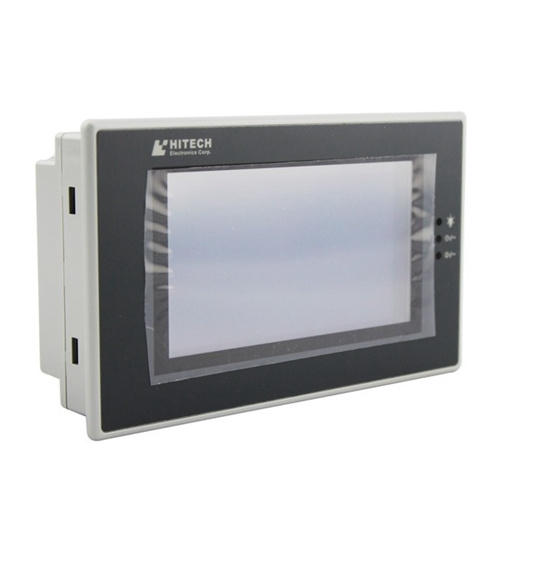

| 4.7″ HITECH (Beijer) PWS operator Panels HMI PWS6500S-S |
PWS6500S-S |
PWS6560S-S |
| LCD Type |
Mono STN LCD |
| Screen size |
4.7”(diagonal) |
| Display resolution |
240 x 128 |
| Brightness (cd/m2) |
110 |
|
|
Via |
| Contrast adjustment |
Via touch panel |
external keyboard (sold sperately) |
|
|
| Display colors |
16 shades of blue |
| Back light type |
CCFL |
| CPU |
32-bit RISC |
| Back light life |
30,000 hours |
| Operation Status LED |
PWR & COM1, COM2 LEDs |
|
|
Via |
| Touch screen |
Analog |
e x t e r n a l keyboard |
|
|
(sold sperately) |
| Touch screen |
|
|
| (number of times) |
> 1,000,000 |
— |
|
|
|
|
|
128 |
| Keypad |
— |
mechanical switches |
| Application Flash ROM |
4MB |
| RAM |
512KB |
| Data/Recipe |
— |
| RTC |
|
| (w/rechargeable lithium battery) |
Yes |
|
|
| Data storage (CF card) |
— |
|
|

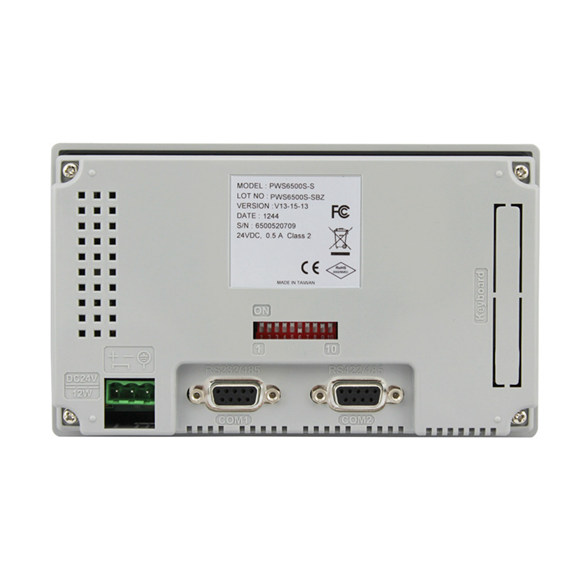

| COM1 |
9-pin female (RS232/RS485) |
|
|
| COM2 |
9-pin female (RS422/RS485) |
|
|
| COM3 |
— |
| USB Host |
— |
| USB Device |
— |
|
|
| Multi-functional port |
— |
|
|
| Ethernet |
— |
|
|
| External dimensions (mm) |
170.3 (W) x 102.6 (H) x 45.3 (D) |
| Cut-out dimensions (mm) |
160.7 x 93.0 |
| Supply voltage |
24V DC ±15 %, < 12W |
| Front protection |
IP65 |
| Certification |
CE,UL,FCC |
| Weight (kg) |
0.47 |
