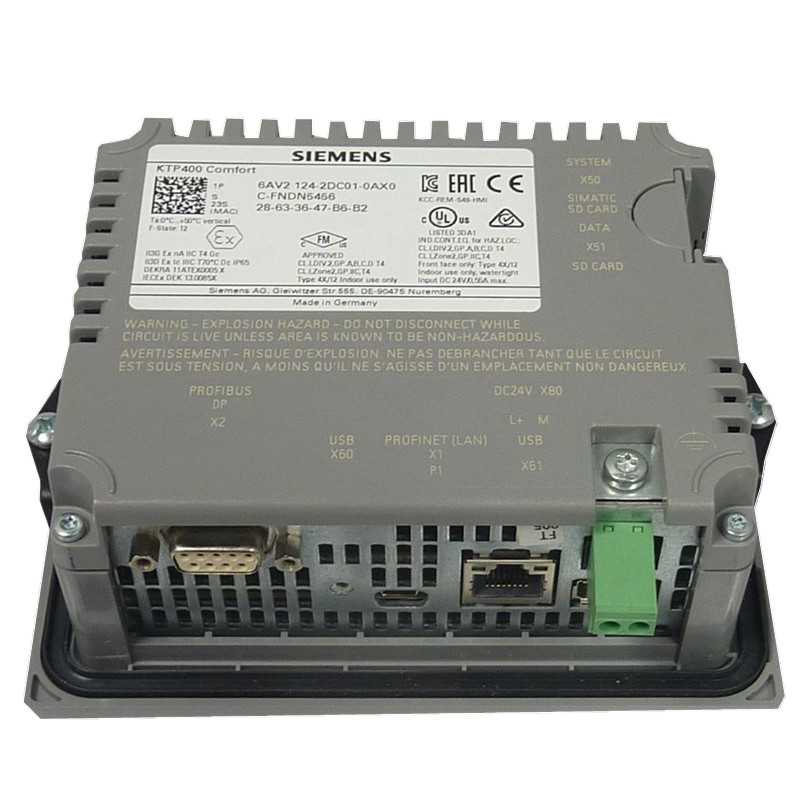

4 inch Siemens SIMATIC HMI KTP400 Comfort Panel Touch Screen 6AV2124-2DC01-0AX0

Qty:

Add to Enquiry Cart

Specification

Download A Munual

General information	4 inch Siemens SIMATIC HMI KTP400 Comfort Panel Touch Screen 6AV2124-2DC01-0AX0
Product type designation	KTP400 Comfort
Design of display	TFT
Screen diagonal	4.3 in
Display width	95 mm
Display height	53.8 mm
Number of colors	16 777 216
● Horizontal image resolution ● Vertical image resolution	480 Pixel 272 Pixel
● MTBF backlighting (at 25 °C) ● Backlight dimmable	80 000 h Yes; 0-100 %
● Function keys — Number of function keys	4
— Number of function keys with LEDs ● Keys with LED ● System keys ● Numeric keyboard ● alphanumeric keyboard	4 Yes No Yes; Yes;	Onscreen Onscreen	keyboard keyboard
● Design as touch screen	Yes
● DP direct LEDs (LEDs as S7 output I/O)
— F1…Fx	4
● Direct keys (keys as S7 input I/O)
— F1…Fx	4
● Direct keys (touch buttons as S7 input I/O)	32
Mounting position	vertical
Mounting in portrait format possible	Yes
Mounting in landscape format possible	Yes
maximum permissible angle of inclination without external ventilation	35°
Type of supply voltage	DC
Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Current consumption (rated value)	0.13 A
Starting current inrush I²t	0.5 A²·s
Active power input, typ.	3.1 W
