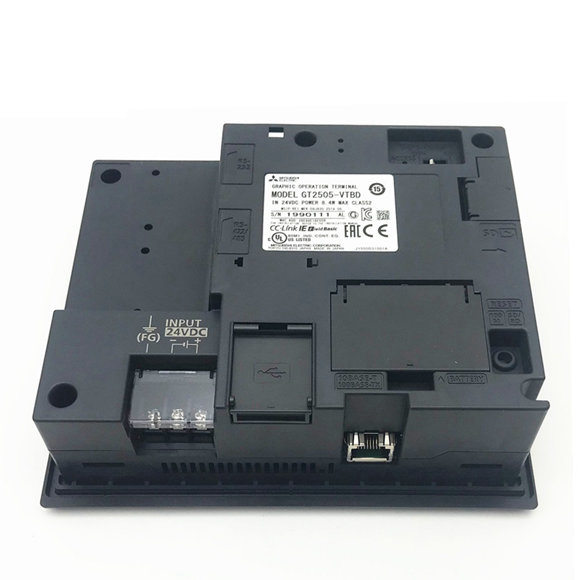

| 7″ Mitsubishi Touch screen HMIs | GT2508-VTBA GT2508-VTBD | GT2508-VTWA GT2508-VTWD | GT2508F-VTNA GT2508F-VTND | GT2507-WTBD GT2507-WTSD | GT2507T-WTSD | GT2505-VTBD |
| Display Section (*1, *2)
Type |
TFT color LCD | |||||
| Screen Size | 8.4″ | 7″ Wide | 5.7″ | |||
| Resolution (Dots) | 640 x 480 VGA | WVGA:800 x 480 dots | 640 x 480 VGA | |||
| Display Size (W x H) mm | 170.9 x 128.2 | 152.40 x 91.44 | 115.2 x 86.4 | |||
|
Number of Characters |
16-dot standard font: 40 chars. × 30 lines (2-byte); 12-dot standard font: 53 chars. × 40 lines (2-byte) |
16-dot standard font: 50 characters × 30 rows (Two-byte characters) 12-dot standard font: 66 characters × 40 rows (Two-byte characters) |
16-dot standard font: 40 chars. × 30
lines (2-byte); 12-dot standard font: 53 chars. × 40 lines (2-byte) |
|||
| Display Colors | 65536 colors | |||||
| Intensity Adjustment | 32-level adjustment | |||||
| Backlight
Type |
LED (not replaceable) | |||||
|
Life (*4) |
Approx. 60000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C) |
Approx. 50000 h (operating ambient temperature: 25°C, display intensity: 50%) |
Approx. 60000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C) | |||
| Touch Panel (*3) Type | Analog resistive film | |||||
| Key Size (Dots) | Minimum 2 x 2 dots (per key) (*8) | |||||
| Simultaneous Press | Not available (*5) (only 1 point can be pressed) | |||||
| Life | 1 million times or more (operating force 0.98N or less) | |||||
| Panel Color | Black | White | – | GT2507-WTBD: Black GT2507-WTSD: Silver | Silver | Black |
| Memory
User Memory Capacity ROM (Storage) RAM (Operation) |
ROM: 32MB; RAM: 80MB |
ROM: 32MB; RAM: 128MB |
ROM: 32MB; RAM: 80MB | |||
| Life (No. of Writings) | 100,000 times | |||||
| Internal Clock Accuracy | ±90 sec/month (ambient temperature 25°C) | |||||
| Battery Type | GT11-50BAT lithium battery | |||||
| Life | Approx. 5 years (ambient temperature 25°C) | |||||
| Built-in Interface
RS-232 |
1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (male) | |||||
|
RS-422/485 |
1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (female) | |||||
| Ethernet | 1ch | 2ch | 1ch | |||
|
USB (Host) |
2ch (front/rear face) | 1ch (rear face) | ||||
| Maximum transfer speed: High-Speed 480Mbps Connector shape: USB-A | ||||||
|
USB (Device) |
1ch (front face) | 1ch (rear face) | 1ch (front face) | 1ch (rear face) | 1ch (front face) | |
|
|
Maximum transfer rate: High-Speed 480 Mbps Connector shape: USB Mini-B | |||||
|
SD Memory Card |
1ch SDHC compliant (maximum 32GB) | |||||
|
Extension Interface |
For communication unit/option unit mounting | – | – | – | ||
|
Side Interface |
For installing a wireless LAN communication unit | – | ||||
|
Sound Output Interface |
– |
1 channel, WAV format (16 bits, 8 kHz/16 kHz, monoral) applicable plug: ø3.5 stereo miniplug (3-prong) |
– |
|||
| Buzzer Output | Single tone (tone, tone length adjustable) | |||||
| Power LED | Emission color: 2 colors (blue, orange) | |||||
|
Protective Construction |
Front: IP67F (*6, *9) Inside control panel: IP2X | Front: IP67F (*7, *9) Inside control panel: IP2X | Front: IP67F (*6*9) In control panel: IP2X | Front: IP66F / IP67F
(*9) In control panel: IP2X |
Front: IP67F (*7, *9) Inside control panel: IP2X | |
| External Dimensions (W x H x D) mm | 241 x 194 x 52 | 236 x 185 x 54 | 189 x 142 x 48 | 214 x 158 x 55 | 164 x 139 x 53.5 | |
| Panel Cutout (W x H) mm | 227 x 176 | 194 x 158 | 180.5 x 133.5 | 197 x 141 | 153 x 121 | |
| Weight (Excluding Mounting Brackets) kg | 1.5 | 0.75 | 1.2 | 0.6 | ||
|
Applicable Software Package |
GT Works3 Version1.112S or later |
GT Works3 Version1.150G or later |
GT Works3 Version 1.175H or later |
GT Works3 Version1.180N or later | ||
