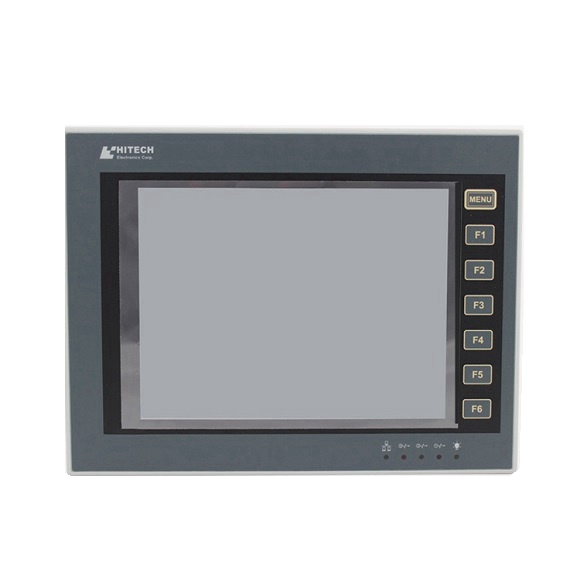

| 7.5″ HITECH (Beijer) operator Panels touch screen |
PWS6800C-P |
PWS6800C-N |
| LCD Type |
Color STN LCD |
| Screen size |
7.5” (diagonal) |
| Display resolution |
640 x 480 |
| Brightness (cd/m2) |
200 |
|
|
| Contrast adjustment |
Via touch panel |
|
|
| Display colors |
64K colors |
| Back light type |
CCFL |
| CPU |
32-bit RISC |
| Back light life |
60,000 hours |
| Operation Status LED |
PWR, COM1—3, Ethernet LEDs |
|
|
| Touch screen |
Analog |
|
|
| Touch screen |
|
| (number of times) |
> 1,000,000 |
|
|
|
1 Menu key and 6 user-defined function keys (F1—F6) |
| Keypad |
|
| Application Flash ROM |
8MB |
| RAM |
16MB |
| Data/Recipe |
512KB |
| RTC |
|
| (w/rechargeable lithium battery) |
Yes |
|
Yes |
| Data storage (CF card) |
|
|

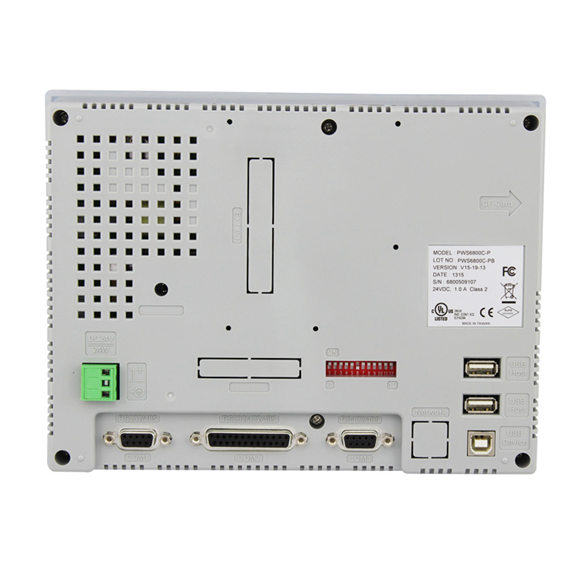

| COM1 |
9-pin female (RS232/RS485) |
|
|
| COM2 |
25-pin female (RS232/RS422/RS485) |
|
|
| COM3 |
9-pin female (RS422/RS485) |
| USB Host |
2 |
| USB Device |
1 |
|
|
| Multi-functional port |
— |
|
|
| Ethernet |
— |
Yes |
|
|
| External dimensions (mm) |
231.0 (W) x 176.0 (H) x 46.8 (D) |
| Cut-out dimensions (mm) |
220.8 x 165.8 |
| Supply voltage |
24V DC ±15 %, < 24W |
| Front protection |
IP65 |
| Certification |
CE,UL,FCC |
| Weight (kg) |
1.2 |
