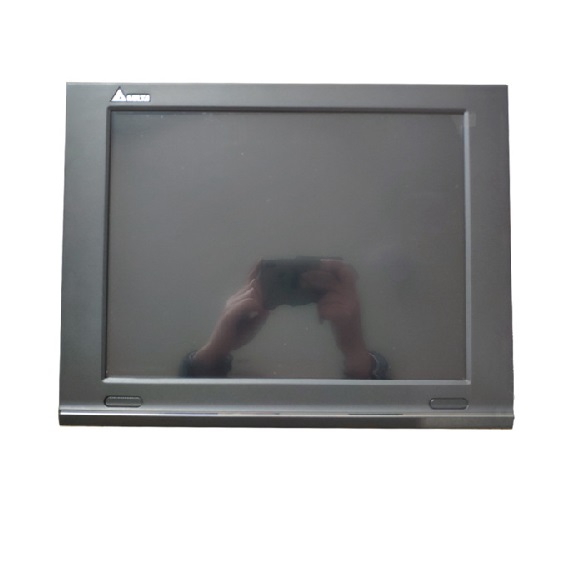

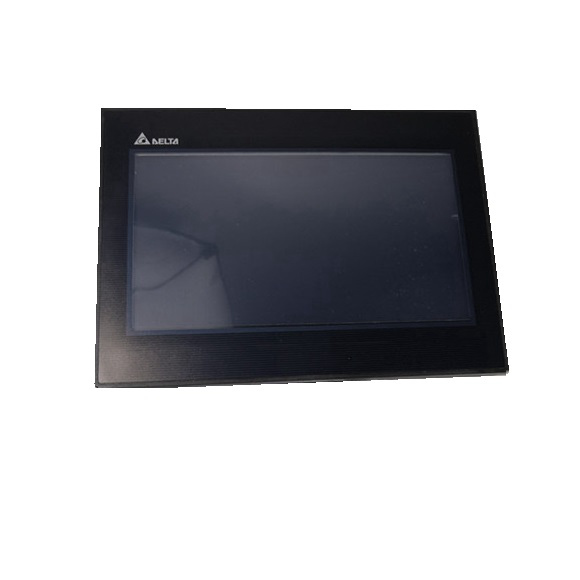

| MODEL | DOP-W105B | DOP-W127B | DOP-W157B | ||
| Touch Screen Interface | 4-wire resistive touch screen
> 10,000,000 operated |
||||
| Buzzer | Multi-Tone Frequency（2K ~ 4K Hz）／80dB | ||||
| Audio Output | I2S Decode, Stereo
Headphone jack only |
I2S Decode, Stereo
Headphone jack + Built in 1.5W Speaker |
|||
| USB | 1 USB Host Ver 2.0 | 3 USB Host Ver 2.0 | |||
| SD | SDHC x 1 | ||||
| Serial COM Port
COM1 |
N/A | ||||
|
COM2 |
RS-232／RS-422／RS-485 (has built-in isolated power circuit (Note 1)) | ||||
|
COM3 |
RS-232／RS-422／RS-485 (has built-in isolated power circuit (Note 1)) | ||||
|
Ethernet |
2 Ports
IEEE 802.3(10BASE-T) IEEE 802.3u(100BASE-TX) IEEE 802.3x (Full Duplex and flow control) |
||||
| Perpetual Calendar (RTC) | Built-in | ||||
| Cooling Method | Natural air circulation | ||||
| Safety Approval | CE / UL (Note 3) | ||||
| Waterproof Degree | IP65 / NEMA4 (Note 3) | ||||
| Operation Voltage (Note2) | DC +24V（-10% ~ +15%）(please use isolated power supply) | ||||
| Voltage Endurance | AC500V for 1 minute (between charging (DC24V terminal) and FG terminals) | ||||
| Power Consumption (Note 2) | 13.5W (Max) | 18.5W (Max) | 21.6W (Max) | ||
| Backup Battery | uses a gold-capacitor instead of a battery, no need replacement of
batteries |
||||
|
Backup Battery Life |
It can keep the RTC work at least seven days under the working
environment where the conditions do not exceed the specifications for DOP-W series. |
||||
| Operation Temperature | o o
0 C ~ 50 C |
||||
| Storage Temperature | o o
-20 C ~ +60 C |
||||
|
Ambient Humidity |
o o 10% ~ 90% RH [0 ~ 40 C], 10% ~ 55% RH [41 ~ 50 C] Pollution Degree 2 |
||||
|
Noise Immunity |
DOP-W105B / DOPW-127B / DOP-W157B | ||||
| ESD
(IEC 61131-2, IEC 61000-4-2) |
±6KV Contact Discharge | ||||
| ±10KV Air Discharge | |||||
| EFT
(IEC 61131-2, IEC 61000-4-4) |
Power Line:±1KV (Class A) | ||||
| Communication I/O: ±500V (Class A) | |||||
|
Surge (IEC 61132-2, IEC 61000-4-5) |
Power line ±1KV DM | ||||
| Series Port ±500V CM | |||||
| Ethernet ±500KV CM | |||||
| RS
(IEC 61131-2, IEC 61000-4-3) |
80MHz ~ 1GHz, 10V/m. 1.4GHz ~
2.0GHz, 10V/m |
||||
| CS
(EN 61000-4-6, IEC61131-2 9.10) |
150kHz ~ 80MHz, 3V/m |
||||
| Vibration | IEC 61131-2 compliant 5Hz≦f＜8.3Hz = Continuous: 3.5mm, 8.3Hz≦f≦
150Hz = Continuous: 1.0g |
||||
| Shock | IEC 60068-2-27 compliant 15g peak for 11 ms duration, X, Y, Z directions for 6 times | ||||
| Dimensions
(W) x (H) x (D) mm |
299 x 224 x 46.8 | 313 x 239.5 x 67.5 | 384.4*295.8*67.8 | ||
| Panel Cutout
(W) x (H) mm |
285.2 x 210.2 | 302.7 x 228.7 | 372.4*283.7 | ||
| Weight | Approx. 1750g | Approx. 2830g | Approx. 3880g | ||
