| Type |

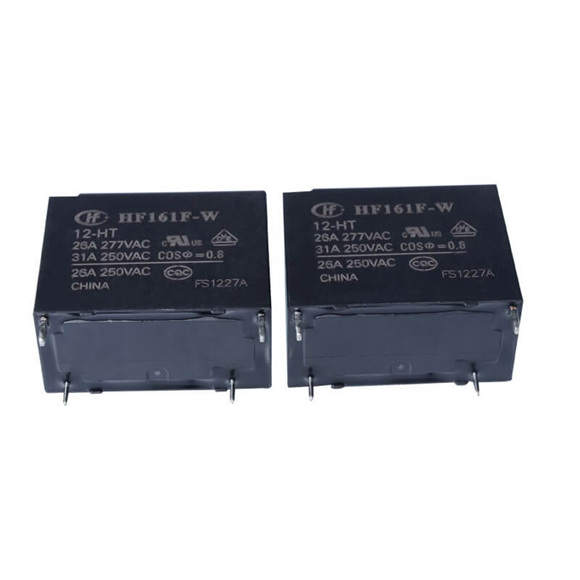

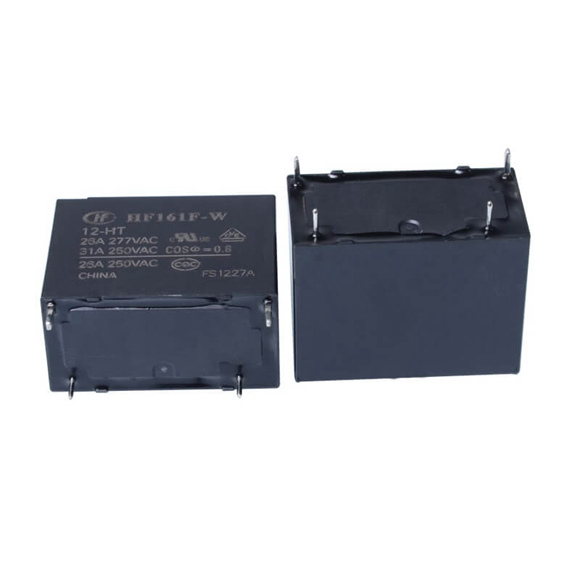

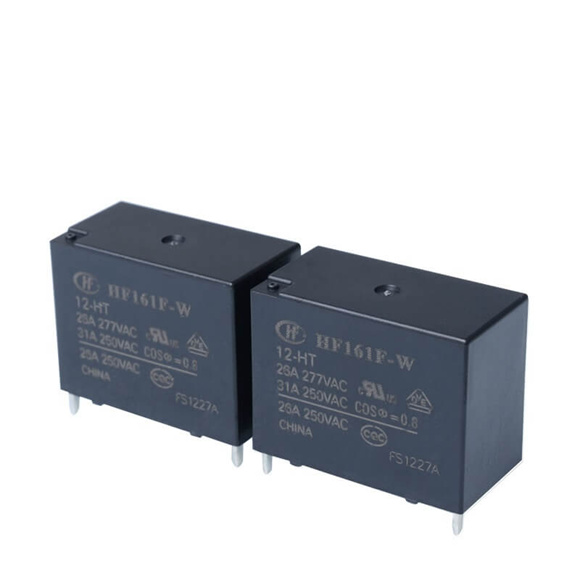

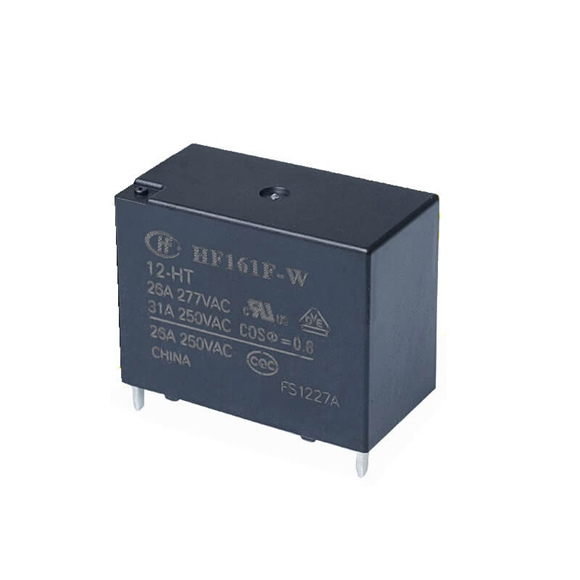

HF161F-W |
|
| Coil voltage form |
DC |
|
| Coil voltage |
12, 18, 9, 24 |
|
| Contact arrangement |
1 Form A |
|
| Contact version |
Single contact |
|
| Terminal type |
PCB |
|
| Construction |
Flux proofed |
|
| Coil power |
Standard |
|
| Sort |
Single side stable |
|
| Contact capacity |
AgSnO2 |
|
| Insulation standard |
Class F |
|
| Packing method |
plastics packing |
|
| Rated voltage(V) |
250 |
|
| Coil angel form |
PCB |
|
| Coil power |
Standard:Approx. 1.4W |
|
| Dielectric strength (between coil & contacts) (VAC 1min) |
4500 |
|
| Operate time（ms） |
≤20 |
|
| Release time（ms） |
≤10 |
|
| Coil resistance（Ω） |
Standard:9:58；12:103；18:230；24:410 |
|
| Creepage Distance（mm） |
8.0 |
|
| Electrical Distance（mm） |
6.4 |
|
| Insulation resistance（MΩ） |
1000 |
|
| Max. switching Current（AC） |
31 |
|
| Max. switching voltage（VAC） |
277 |
|
| Ambient temperature (max)（℃） |
-40 |
|
| Ambient temperature (min)（℃） |
85 |
|
| Length(mm) |
30.4 |
|
| Width(mm) |
15.9 |
|
| Heigh(mm) |
23.3 |
|
| Mechanical endurance min |
1000000 |
|
| Electrial eddurance min |
30000 |
|
| IEC60335-1 |
YES |
|
| Contact gap |
1.5 |
|
| Product Description |
SOLAR RELAY |
|
| Application |
PV Inverter,UPS power supply, charging pile, etc |
|
| Weight（g） |
Approx. 21 |
|
| Volume（mm3） |
30.4×15.9×23.3 |
|
| Product approval |
UL,VDE,CQC |
|
| File No. |
UL:E134517,VDE:40031410,CQC:CQC1002050943 |
