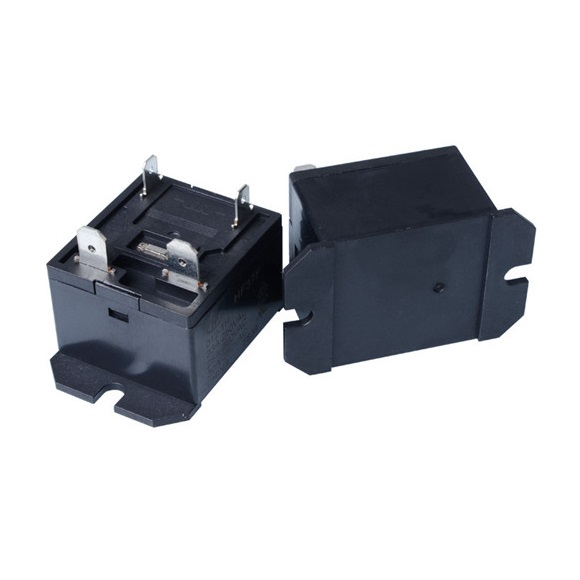

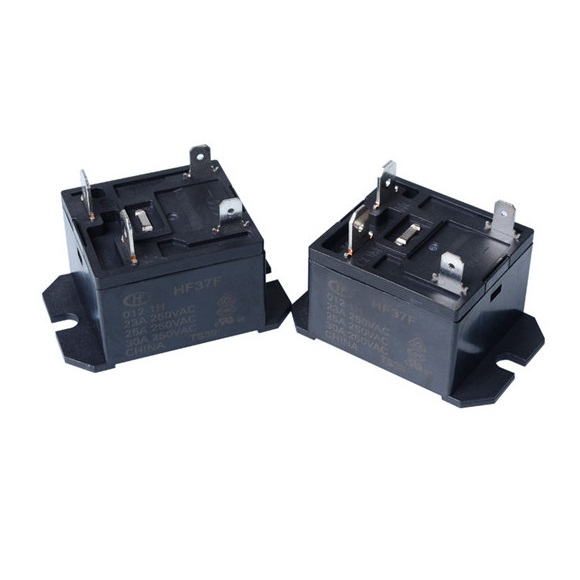

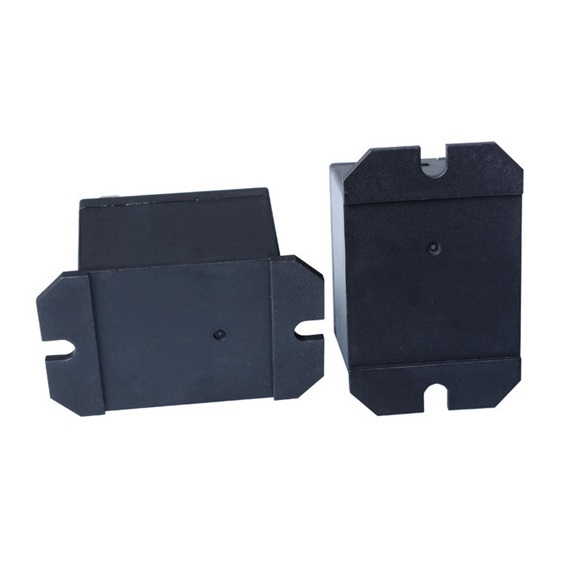

| Type |
HF37F |
|
| Coil voltage form |
DC |
|
| Coil voltage |
60, 9, 12, 48, 5, 6, 24 |
|
| Contact arrangement |
1 form A |
|
| Contact version |
single contact |
|
| Terminal type |
QC |
|
| Construction |
Dust protected |
|
| Sort |
Single side stable |
|
| Contact capacity |
AgCdO, AgSnO2 |
|
| Insulation standard |
Class A |
|
| Rated voltage(V) |
250Va.c. |
|
| Coil angel form |
QC |
|
| Coil power |
Approx. 1.2 |
|
| Dielectric strength (between coil & contacts) (VAC 1min) |
4000 |
|
| Operate time（ms） |
≤20 |
|
| Release time（ms） |
≤5 |
|
| Coil resistance（Ω） |
5::20.8；6:30；9:67.5；12:120；24:480；48:1920；60:3000 |
|
| Insulation resistance（MΩ） |
1000 |
|
| Max. switching Current（AC） |
30 |
|
| Max. switching voltage（VAC） |
277 |
|
| Ambient temperature (max)（℃） |
-40 |
|
| Ambient temperature (min)（℃） |
70 |
|
| Length(mm) |
35.2 |
|
| Width(mm) |
32.2 |
|
| Heigh(mm) |
24.0 |
|
| Mechanical endurance min |
5000000 |
|
| Electrial eddurance min |
50000 |
|
| Product Description |
Miniature High Power Relay |
|
| Application |
appliances,etc |
|
| Weight（g） |
Approx. 55 |
|
| Volume（mm3） |
35.2×32.2×24.0 |
|
| Product approval |
UL,VDE,CQC |
|
| File No. |
UL:E134517,VDE:40025378,CQC:CQC13002102287 |
