| Type |

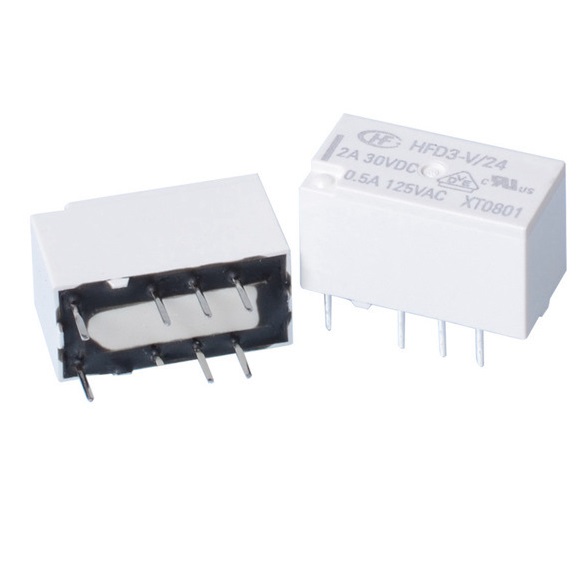

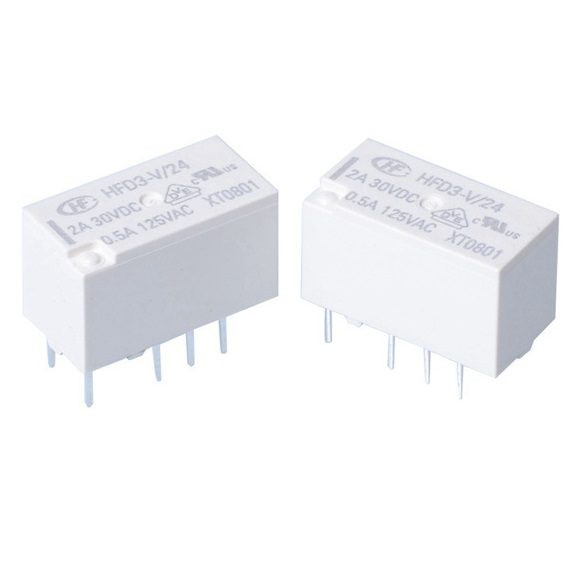

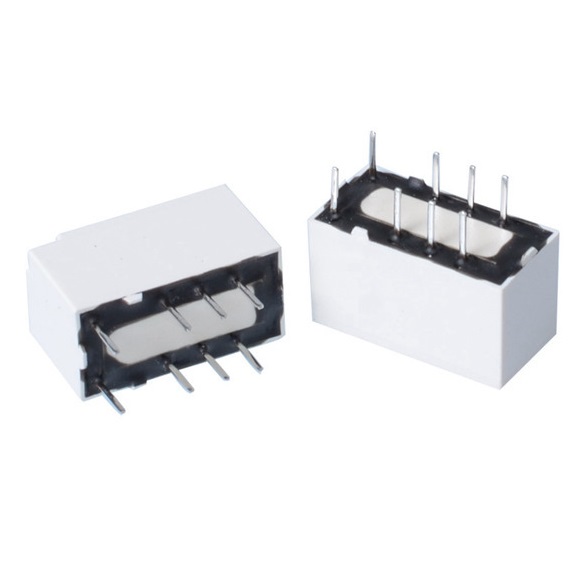

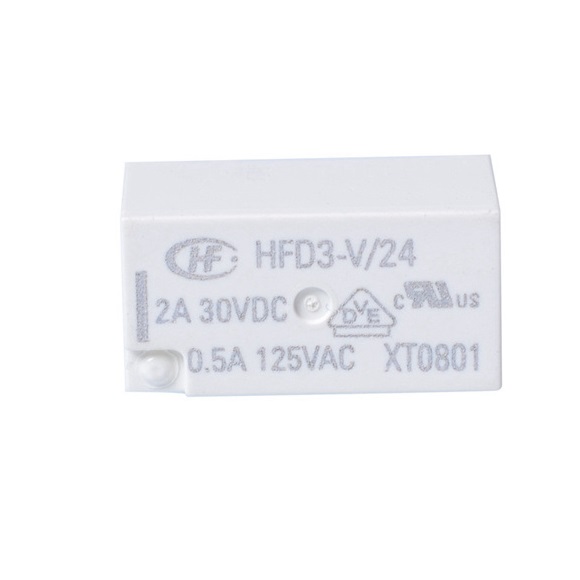

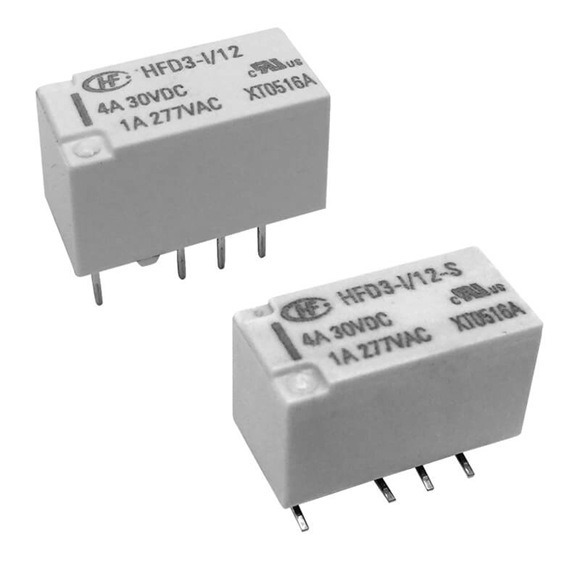

HFD3-V |
|
| Coil voltage form |
DC |
|
| Coil voltage |
12, 2.4, 1.5, 5, 9, 3, 6, 4.5, 24 |
|
| Contact arrangement |
2 Form C |
|
| Contact version |
Double contacts |
|
| Terminal type |
DIP、SMT |
|
| Mounting |
Short terminal SMT, Standard SMT, DIP |
|
| Construction |
Plastic sealed |
|
| Sort |
Single side stable, 1 coil latching |
|
| Contact capacity |
AgNi+Au plated, AgPd+Au plated |
|
| Contact plating |
Au plated |
|
| Packing method |
Tape and reel packing, Tube packing |
|
| Coil power |
Approx. 0.14,Approx. 0.2 |
|
| Dielectric strength (between coil & contacts) (VAC 1min) |
3000VAC 1min |
|
| Operate time（ms） |
≤6 |
|
| Release time（ms） |
≤6 |
|
| Coil resistance（Ω） |
分别填写 |
|
| Insulation resistance（MΩ） |
1000 |
|
| Max. switching Current（AC） |
1 |
|
| Max. switching voltage（DC） |
2 |
|
| Max. switching voltage（VAC） |
700VAC（Normally open contacts in seriess）， 400VAC（single contact） |
|
| Max. switching voltage（VDC） |
1000VDC（Normally open contacts in seriess），600VDC （single contact） |
|
| Ambient temperature (max)（℃） |
-40 |
|
| Ambient temperature (min)（℃） |
85 |
|
| Length(mm) |
15.0 |
|
| Width(mm) |
7.5 |
|
| Heigh(mm) |
9.2 |
|
| Mechanical endurance min |
10000000 |
|
| Electrial eddurance min |
100000(See approval reports for more details) |
|
| IEC60335-1 |
YES |
|
| Explosion-proof certification |
IBExU |
|
| Contact gap |
≥0.75mm |
|
| Application |
FAX、XDSL、modulator-demodulator，armarium， safety equipment，smart home，energy management，lighting industry |
|
| Weight（g） |
Approx.2 |
|
| Volume（mm3） |
15.0×7.5×9.2 |
|
| Product approval |
UL,VDE,CQC |
|
| File No. |
UL E133481,VDE 40018867,CQC CQC14002107409 |
