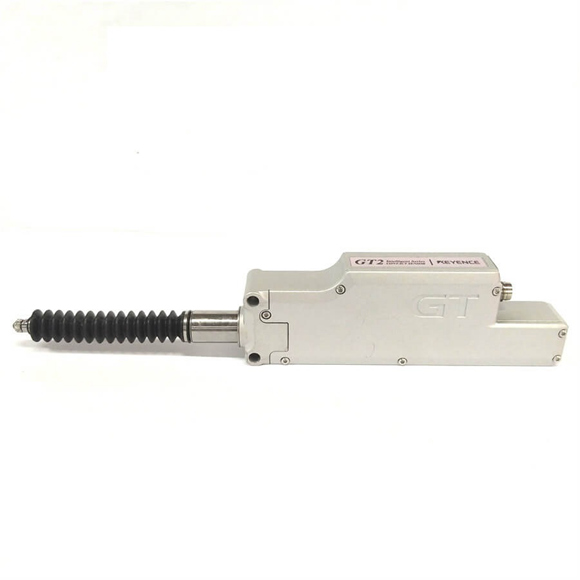

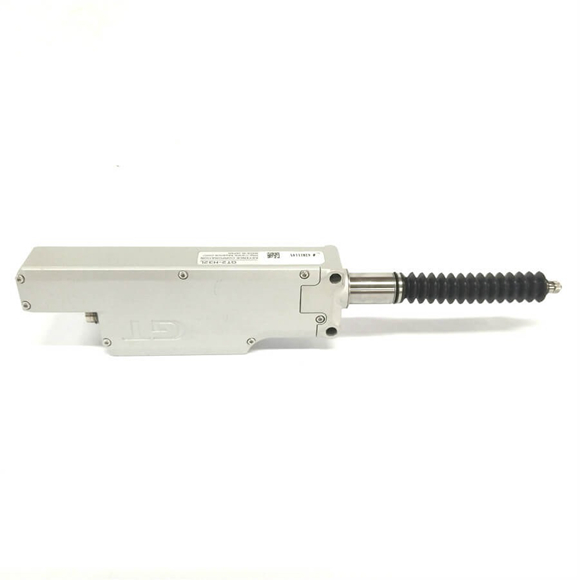

| Model |
GT2-H32 |
GT2-H32L |
GT2-H50 |
| Detection system |
Scale Shot System, absolute (no tracking errors) type |
| Measuring range |
32 mm 1.26″ |
50 mm 1.97″ |
| Resolution |
0.5 μm |
| Indicated accuracy*1 |
3 μm (P-P) |
3.5 μm (P-P) |
| Downward mounting |
2.1 N |
1.2 N |
3.2 N |
| Side mounting |
1.8 N |
0.9 N |
2.8 N |
| Upward mounting |
1.5 N |
0.6 N |
2.4 N |
| Sampling cycle |
1 ms |
| Mechanical response*1 |
6 Hz |
5 Hz |
7 Hz |
| Operation indicator light |
2-color LED (red, green) |
| Enclosure rating |
IP67 (IEC) |
– |
IP67 (IEC) |
| Ambient temperature |
-10 to +55°C 14 to 131°F (No freezing) |
| Relative humidity |
35 to 85% RH (No condensation) |
| Vibration |
10 to 55 Hz Double amplitude 1.5 mm 0.06″ in the X, Y, Z axis directions respectively, 2 hours |
| Materials Main body |
Main body case: die-cast zinc, Indicator: polyarylate (PAR) |
| Dustboot |
NBR |
– |
NBR |
| Contact*3 |
SUS304, SUS440C |
| Sensor head cable |
Optional (connect to the M8 connector) |
| Weight (not including cable) |
Approx. 270 g |
Approx. 320 g |
