| Model | FU-95 |
| Type | Liquid-level detection fiber unit |
| Detecting method | Pipe mounting type |
| No. of beam axes | 1 mm0.039″ |
| Fibre unit length | 2 m78.74″ free-cut |
| Fibre unit diameter | ø1.0×2 |
| Minimum bend radius | R10 mm0.394″ |
| Accessories | Binding band × 2, nonslip rubber × 2, spacer × 2, screw × 2, nut × 2 |
| Weight | Approx. 7 g |
| Model | FU-95HA |
| Type | Liquid-level detection fiber unit |
| Detecting method | Pipe mounting type |
| No. of beam axes | 1 mm0.039″ |
| Fibre unit length | 2 m78.74″ free-cut |
| Fibre unit diameter | ø1.0×2 |
| Minimum bend radius | R10 mm0.394″ |
| Environmental resistance
Ambient temperature |
-40 to +105 °C -40 to 221 °F*1 |
| Accessories | Binding band × 2, nonslip rubber × 2, spacer × 2, screw × 2, nut × 2 |
| Weight | Approx. 22 g |

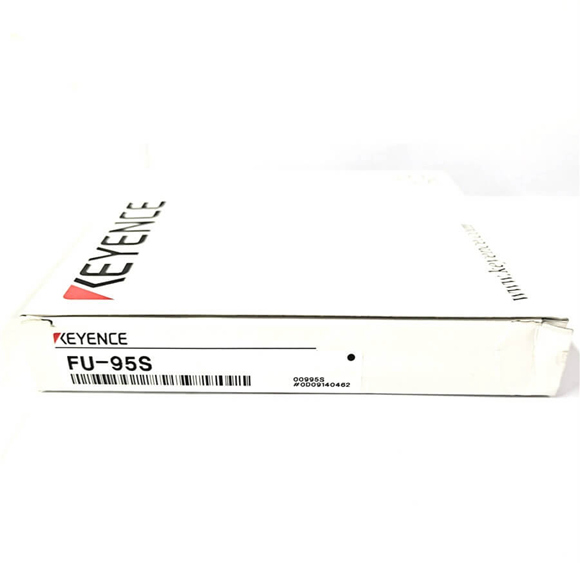

| Model | FU-95S |
| Type | Liquid-level detection fiber unit |
| Detecting method | Pipe mounting type |
| No. of beam axes | 16 mm0.63″ |
| Fibre unit length | 2 m78.74″ free-cut |
| Fibre unit diameter | ø2.2×2 |
| Minimum bend radius | R5 mm0.197″ |
| Environmental resistance
Ambient temperature |
-40 to +70 °C -40 to 158 °F |
| Accessories | Binding band × 2, nonslip rubber × 2 |
| Weight | Approx. 23 g |
| Model | FU-97P*1 |
| Type | Diffuse-reflective |
| Standard detection object | Object with a diameter of 200, t = 0.7 mm0.028″ glass substrate |
| Fibre unit length | 2 m78.74″ free-cut |
| Fibre unit diameter | ø2.2 |
| Minimum bend radius | R40 mm1.575″ |
| Tightening torque | 0.75 Nm or less |
| Material | Main unit case : PFA, PVC; tube : PTFE*4 |
| Accessories | Fiber cutter |
| Weight | Approx. 75 g |
