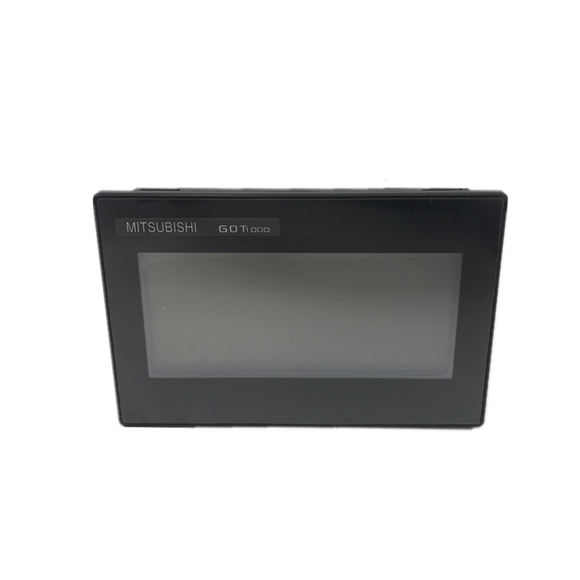

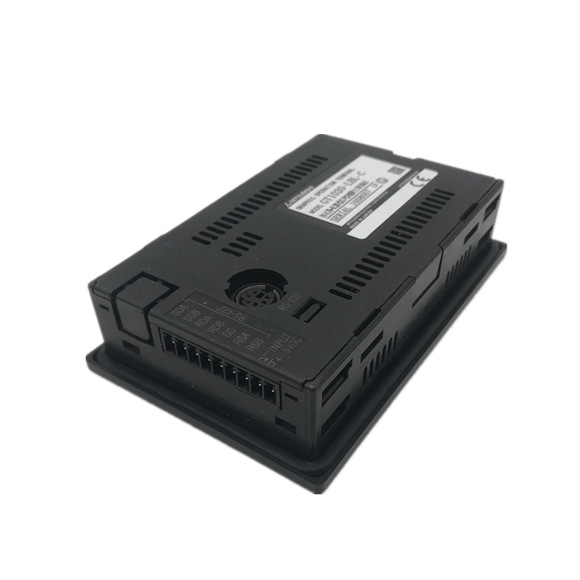

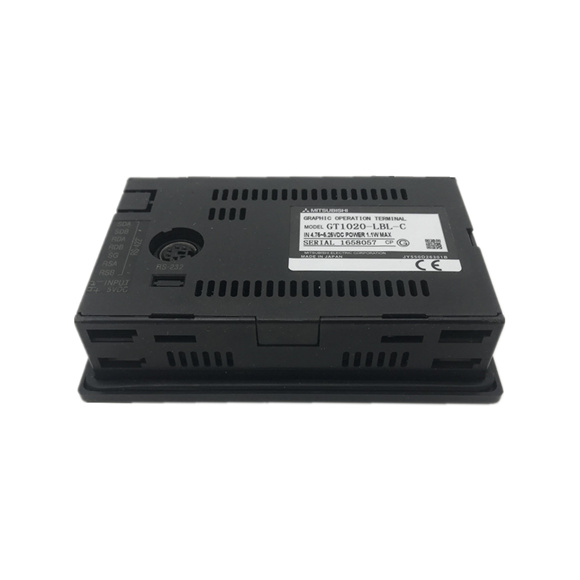

Mitsubishi HMI Touch screen GT1020-LBL/LWL

Series#: Mitsubishi HMI

Product Details

  • 3.7″ [160 64 dots], STN monochrome (black and white) liquid crystal, 3 colors (green/red/orange) LED backlight, 5VDC,
  • PLC connection interface: RS-422
  • Mitsubishi HMI Touch screen GT1020-LBL/LWL
  • We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
  • 100% Original and new,In stock by Mitsubishi PLC
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Item Specifications
GT1020-LBD/LWD GT1020-LBD2/LWD2 GT1020-LBL/LWL
Display section STN monochrome (white/black) liquid crystal
Screen size 3.7″
Resolution 160 64 dots (Horizontal format)
Display size W86.4(3.4) H34.5(1.35) [mm](inch) (Horizontal format)
Display character 16-dot standard font: 20 characters 4 lines (Horizontal format)
Display color Monochrome (white/black)
Display angle Left/Right: 30 degrees, Top: 20 degrees, Bottom: 30 degrees (Horizontal format)
 Contrast adjustment 16-level adjustment
 Intensity of LCD only 200 [cd/m2] (in green)
 Life Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25)


Backlight

LED with 3 available colors (green, red, orange) (no replacement required),

Backlight status (colors, ON/BLINK/OFF) control, Adjustable screensaver activation time Setting the system information*2 enables PLC to control the backlight status.

 Touch panel

Number of touch keys

Maximum 50 keys/screen (Analog resistive film touch panel)
Key size Minimum 2 2 dots (per key)
Simultaneous pressing of two (or more) areas (2-point press) Not supported

(Simultaneous pressing of two or more areas on the screen may activate the switch between those areas.)

Life 1 million times or more (operating force 0.98N max.)
Memory

C drive*3

Flash memory (Internal), for storing project data (512 Kbytes or less), OS, Alarm history, Recipe data and time action setting value
life (Number of write times) 100,000 times
























Built-in interface





















PLC communication

• RS-422 1ch Transmission speed:

115,200/57,600/38,400/

19,200/9,600/4,800bps

Connector shape: Connector terminal block 9 pins

Application:

PLC communication (Hardware version A to D)

• RS-422/485 1ch

Transmission speed: 115,200/57,600/38,400/

19,200/9,600/4,800bps

Connector shape: Connector terminal block 9 pins

Application:

PLC communication Terminating resistor*4:

Open/110 /330  (Switched by terminating resistor selector switch) (At

factory shipment: 330  ) (Hardware version E or later)















RS-232 1ch

Transmission speed: 115,200/57,600/38,400/

19,200/9,600/4,800bps

Connector shape: Connector terminal block 9 pins

Application:

PLC communication















RS-422 1ch

Transmission speed: 115,200/57,600/38,400/

19,200/9,600/4,800bps

Connector shape: Connector terminal block 9 pins

Application:

PLC communication





PC communication

RS-232 1ch

Transmission speed : 115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape : MINI DIN 6 pins (Female)

Application : PC communication (Project data upload/download, OS installation, transparent function)

Buzzer output (a buzzer that sounds when touch keys are pressed) Single tone (LONG/SHORT/OFF adjustable)
Environmental protective structure*5 Equivalent to IP67 (JEM1030) (front section) (Horizontal format)
External dimensions W113(4.44) H74(2.91) D27(1.06) [mm](inch) (Horizontal format)
Panel cutting dimensions W105(4.13) H66(2.59) [mm](inch) (Horizontal format)
