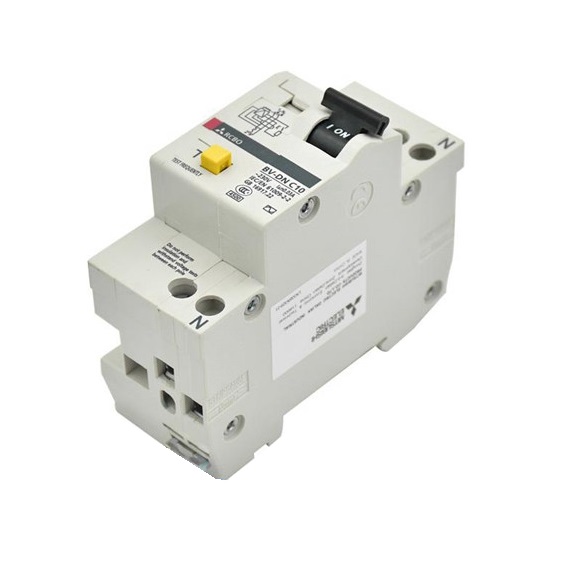

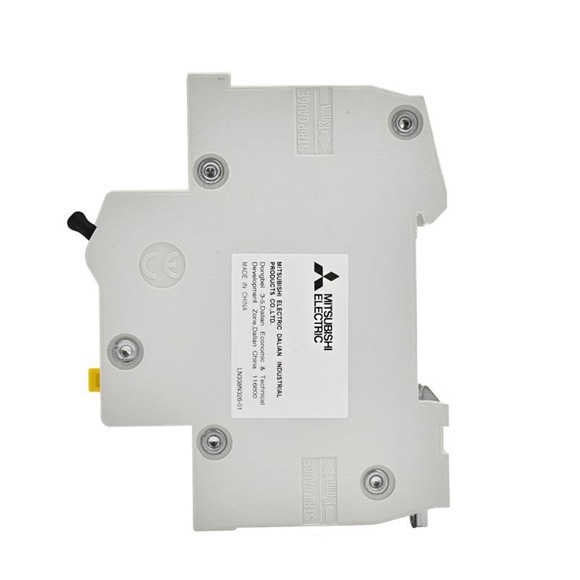

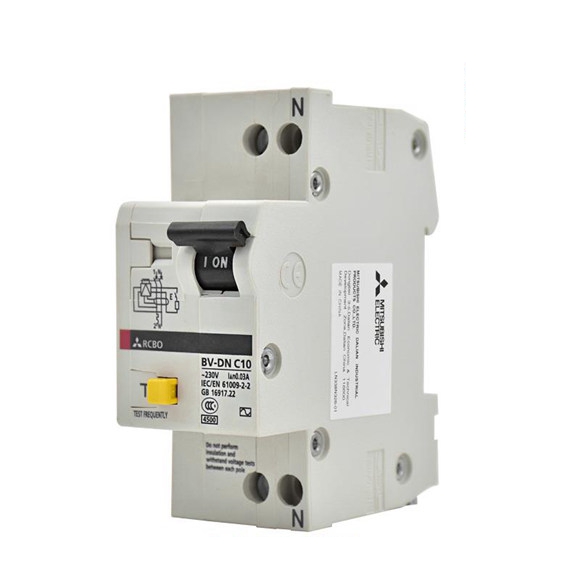

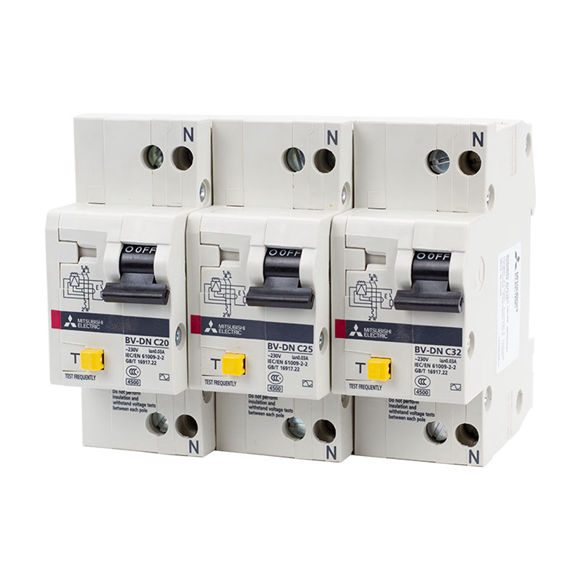

Mitsubishi Miniature Circuit Breakers (RCBO) BV-DN 6-40A 2pole 1+N pole

Mitsubishi Miniature Circuit Breakers (RCBO) BV-DN 6-40A 2pole 1+N pole
We are First Class mitsubishi circuit breakers distributor and mitsubishi circuit breaker supplier in China.
We can Supply mitsubishi circuit breaker parts,such as mitsubishi air circuit breaker,mitsubishi electric circuit breaker,mitsubishi moulded case circuit breaker,mitsubishi dc circuit breaker,mitsubishi earth leakage circuit breaker,mitsubishi electric vacuum circuit breaker,mitsubishi electric high voltage circuit breaker,mitsubishi gas circuit breaker on,
100% Original and new,In stock by Mitsubishi Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Mitsubishi Circuit Breaker	RCBO
Type	BV-DN
No. of poles [P]	2(1+N)*1
Rated current [A] at ambient temperature 30:	6, 10, 16, 20, 25, 32, 40
Rated voltage [VAC]	230
Rated current sensitivity IDn [mA]	30, 100, 300
Max. operating time at 5IDn [s]	0.04
Pulsating current sensitivity	Type AC
Breaking capacity [kA] sym. (IEC 61009)	4.5
Tripping characteristics	Type C*2
Mass [kg]	0.19
Automatic tripping device	Thermal, magnetic
Number of operating cycles Without current	20,000
With current	20,000 (In 6,10,16,20A) 15,000 (In 25A) 10,000 (In 32,40A)
Type of overcurrent release	Thermal-magnetic
Mounting	IEC35mm rail
Applicable wire size	1 to 16mm2
Terminal connection	Solderless
Based on standard	IEC61009-2-2
CE marking	EN61009-2-2 : Self-declaration
CCC	GB16917.22
