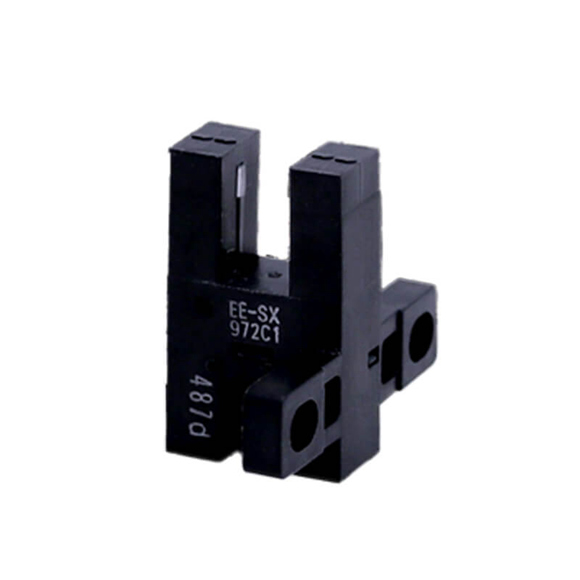

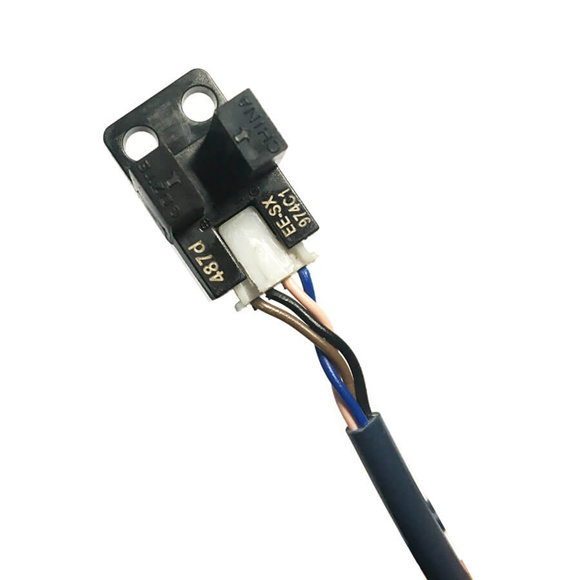

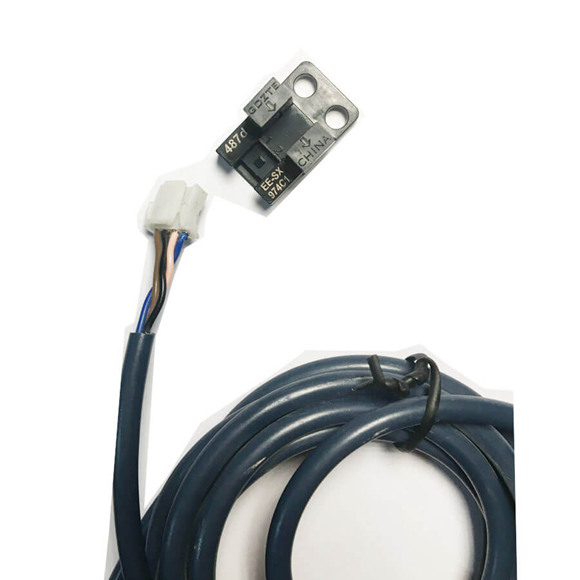

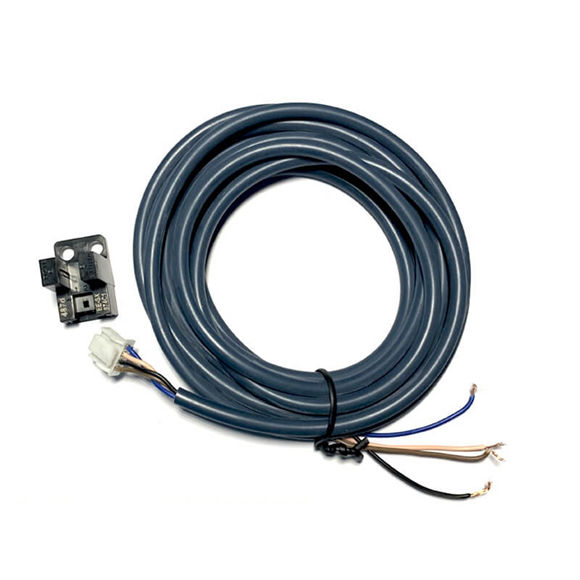

Omron Photomicro sensors EE-SX970-C1 EE-SX971-C1 EE-SX972-C1 EE-SX974-C1

Omron Photomicro sensors EE-SX970-C1 EE-SX971-C1 EE-SX972-C1 EE-SX974-C1

Series#: Omron Photomicro sensors

Product Details

Omron Photomicro sensors EE-SX970-C1 EE-SX971-C1 EE-SX972-C1 EE-SX974-C1
We are First Class Omron sensor dealer and Omron sensor distributor in China.
We can Supply all kinds of Omron sensor parts,such as Omron Photomicro Sensors,Omron Proximity Sensors,Omron Fiber Sensors,Omron Photoelectric Sensors and Omron Rotary Encoder.
All parts are 100% Original and new in stock by Omron and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Type	Standard	L-shaped		T-shaped, slot center 7 mm	Close-mount- ing	T-shaped, slot center 10 mm	F-shaped	R-shaped
NPN	EE-SX970-C1	EE-SX971-C1		EE-SX972-C1	EE-SX974-C1	EE-SX975-C1	EE-SX976-C1	EE-SX977-C1
PNP	EE-SX970P-C1	EE-SX971P-C1		EE-SX972P-C1	EE-SX974P-C1	EE-SX975P-C1	EE-SX976P-C1	EE-SX977P-C1
Sensing distance	5 mm (slot width)
Sensing object	Opaque: 2 ´ 0.8 mm min.
Differential distance	0.025 mm max.		*1
Light source (Peak wave- length)	Infrared LED with a peak wavelength of 940 nm
Indicator	Light indicator (orange LED)
Supply voltage	5 to 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption	21 mA max.
Control output	Load power supply voltage: 5 to 24 VDC, Load current: 50 mA max., Off-state current : 0.5mA max, 50 mA load current with a residual voltage of 1.0 V max., 5 mA load current with a residual voltage of 0.4 V max.
Protection circuit	Power supply reverse polarity protection; output reverse polarity protection; overcurrent protection (only OUT2 on models with NPN output)
Response frequency	1 kHz min. (3 kHz average) *2
Ambient illumination	1,000 lx max. with fluorescent light on the surface of the receiver
Ambient temperature range	Operating: -25 to 55°C Storage: -30 to 80°C (with no icing or condensation)
Ambient humidity range	Operating: 5% to 85% Storage: 5% to 95% (with no icing or condensation)
Vibration resistance (De- struction)	10 to 2,000 Hz 0.75-mm single amplitude (15-min periods, 10 cycles) each in X, Y, and Z directions
Shock resistance (De- struction)	Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP50

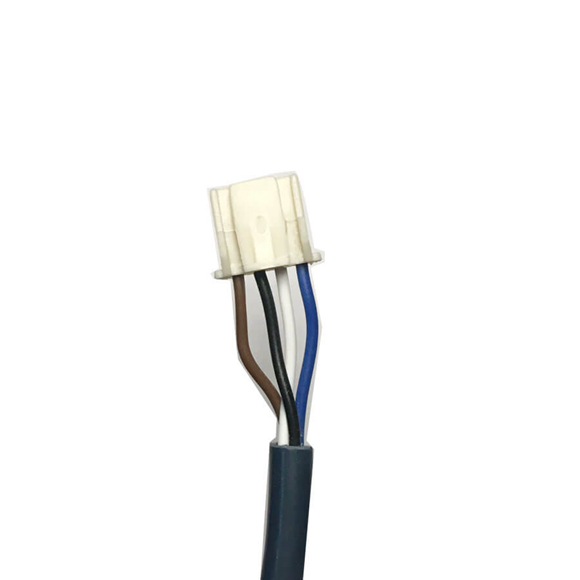

Connecting method	Connector
Weight (Packed state)	Approx. 3 g
Case/Cover	Polybutylene terephthalate (PBT)
Emitter/receiver	Polycarbonate (PC)
