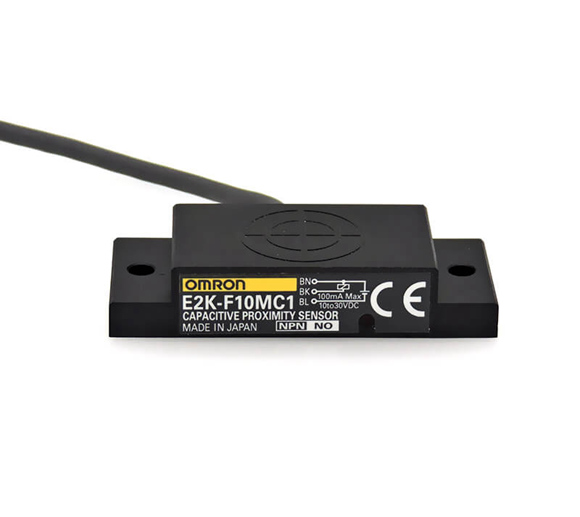

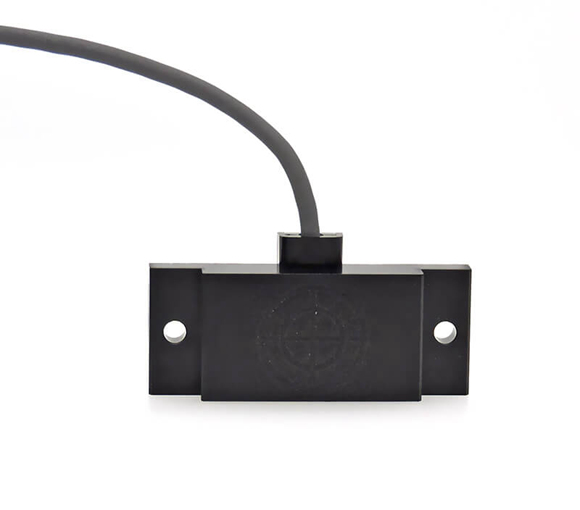

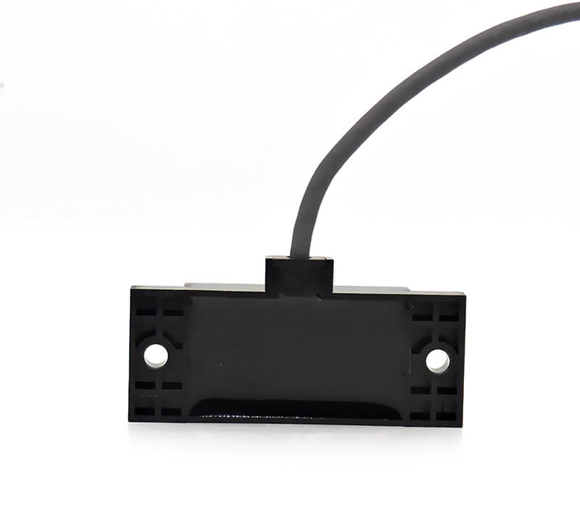

| Item Model |
E2K-F10MC@-A |
E2K-F10MC@ |
| Sensing distance |
10 mm (Sensing distance adjustable range: 4 to 10 mm) |
10 mm ±10% |
| Set distance |
0 to 7.5 mm * |
| Differential travel |
15% max. of sensing distance |
| Detectable object |
Conductors and dielectrics |
| Standard sensing object |
Grounded metal plate: 50 ´ 50 ´ 1 mm |
| Response frequency |
100 Hz |
| Power supply voltage (operating voltage range) |
12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. |
| Current consumption |
10 mA max. at 24 VDC |
| Load current |
NPN open collector, 100 mA max. (at 30 VDC) |
| Residual voltage |
1.5 V max. (Load current: 100 mA, Cable length: 2 m) |
| Indicators |
Detection indicator (red) |
| Number of turns of sensitivity adjustment |
11 turns |
– |
| Operation mode (with sensing object approaching) |
NO (Refer to the timing charts under I/O Circuit Diagrams on page 3 for details.) |
| Protection circuits |
Reverse polarity protection, Surge suppressor |
| Ambient temperature range |
Operating/Storage: -10 to 55°C (with no icing or condensation) |
| Ambient humidity range |
Operating/Storage: 35% to 95% |
Operating/Storage: 35% to 95% |
| Temperature influence |
±15% max. of sensing distance at 23°C in the temperature range of -10 to 55°C |
| Voltage influence |
±2.5% max. of sensing distance at rated voltage at rated voltage ±10% |
| Insulation resistance |
50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength |
500 VAC, 50/60 Hz for 1 min between current-carrying parts and case |
| Vibration resistance |
Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance |
Destruction: 500 m/s2 3 times each in X, Y, and Z directions |
| Degree of protection |
IP64 (IEC) |
IP66 (IEC) |

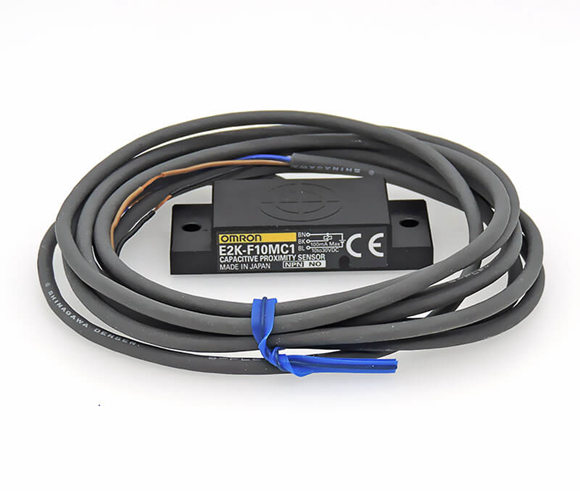

| Connection method |
Pre-wired Models (Standard cable length: 2 m) |
| Weight (packed state) |
Approx. 35 g |
