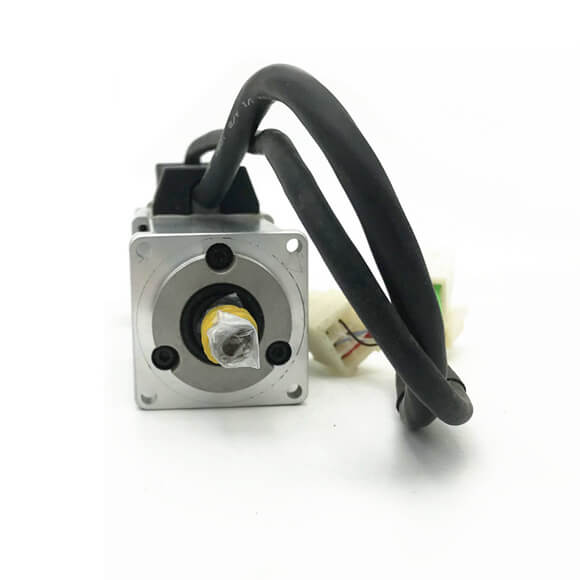

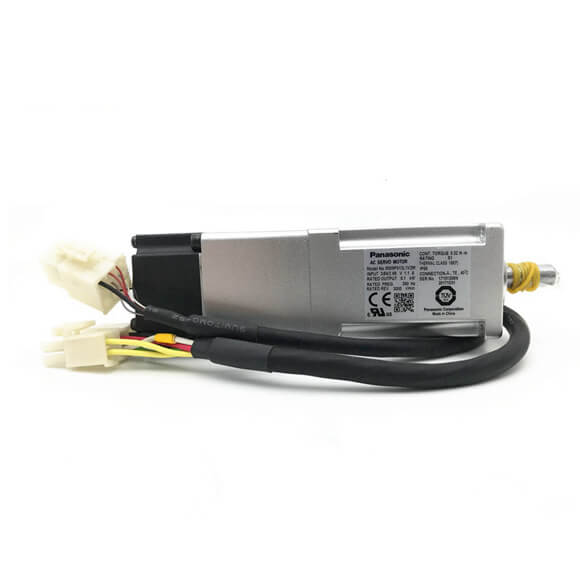

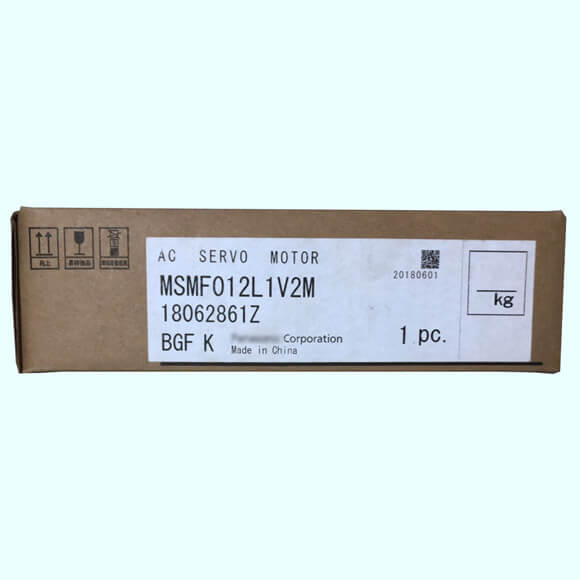

Panasonic Servo Motor MINAS A6 100W Break MSMF012L1V2M

Panasonic Servo Motor MINAS A6 100W Break MSMF012L1V2M
We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
100% Original and new,In stock by Panasonic Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Panasonic Servo Motor MINAS A6 100W	AC200 V
Panasonic Servo Motor MINAS A6 100W	MSMF012L1□□
Multifunction type	MADLT05SF
RS485 communication type *2	MADLN05SG
Basic type *2	MADLN05SE
Frame symbol	A-frame
Power supply capacity(kVA)	0.5
Rated output(W)	100
Rated torque(N•m)	0.32
Continuous stall torque(N•m)	0.32
Momentary Max. peak torque(N•m)	0.95
Rated current(A(rms))	1.1
Max. current(A(o-p))	4.7
Regenerative brake frequency (times/min) Note)1 Without option	No limit Note)2
DV0P4281	No limit Note)2
Rated rotational speed (r/min)	3000
Max. rotational speed (r/min)	6000
Moment of inertiaof rotor (×10−4 kg•m2)Without brake	0.048
With brake	0.051
Recommended moment of inertia ratio of the load and the rotor Note)3	30 times or less
Rotary encoder specifications *3	23-bit Absolute
Resolution per single turn	8388608
