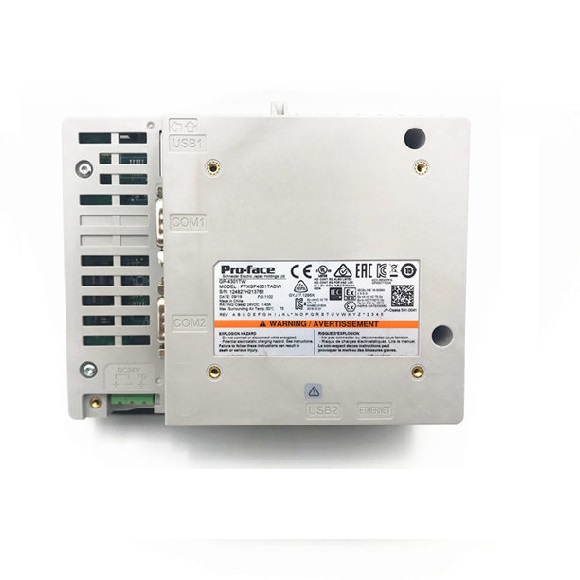

| Functional Specification | 5.7″ inch Proface Touch screen HMI PFXGP4301TAD | ||
| Display Type | Proface Touch screen HMI PFXGP4301TAD | ||
| Display Size | 5.7″ TFT Color LCD | ||
| Resolution | 320 x 240 pixels (QVGA) | ||
| Effective Display Area | W115.2 x H86.4 mm [W4.54 x H3.40 in.] | ||
| Display Colors | 65,536 Colors (No blink)/16,384 Colors (Blink) | ||
| Backlight | White LED (User nonreplaceable parts. When replacement is required, contact your local distributor. | ||
| Brightness Control | 16 Levels (Adjusted with the touch panel or the software) | ||
| Backlight Service Life | 50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%) | ||
| Language Fonts | Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.) | ||
| Character Sizes | Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts | ||
| Font Sizes *1 | Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times. | ||
| Text 8 x 8 dots | 40 char. x 30 rows | ||
| Text 8 x 16 dots | 40 char. x 15 rows | ||
| Text 16 x 16 dots | 20 char. x 15 rows | ||
| Text 32 x 32 dots | 10 char. x 7 rows | ||
| Application Memory | FLASH EPROM 16 MB (including a logic program area) | ||
| Logic Program Area *2 | FLASH EPROM 132 KB (Equivalent to 15,000 steps) | ||
| Font Area | FLASH EPROM 8 MB (Replaceable Lithium battery for backup memory) | ||
| Data Backup | SRAM 320 KB (Replaceable Lithium battery for backup memory) | ||
| Variable Area | SRAM 64 KB (Replaceable Lithium battery for backup memory) | ||
| Clock Accuracy *3 | ±65 sec/month (deviation at room temperature and power is OFF) | ||
| Touch Panel Type | Resistive Film (analog) | ||
| Touch Panel Resolution | 1,024 x 1,024 | ||
| Touch Panel Service Life | 1,000,000 times or more | ||
| Interface Serial (COM1) | RS-232C Asynchronous Transmission Data Length: 7 or 8 bit, Parity: none, Odd or Even, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug) | ||
| Interface Serial (COM2) | RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bit Parity: none, Even or Odd Stop Bit: 1 or 2 bit Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug) | ||
| Interface Ethernet (LAN) | IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ- 45) x 1 |
||
| Interface USB (Type-A) | Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m or less | ||
| Interface USB (Type mini-B) | Conforms to USB2.0 (mini-B) x 1 Communication Distance: 5 m or less | ||
| Interface SD Card | SD Card Slot x 1 | ||
