Schneider Control Relays RM22TG20

Series#: Schneider Control Relays

Product Details

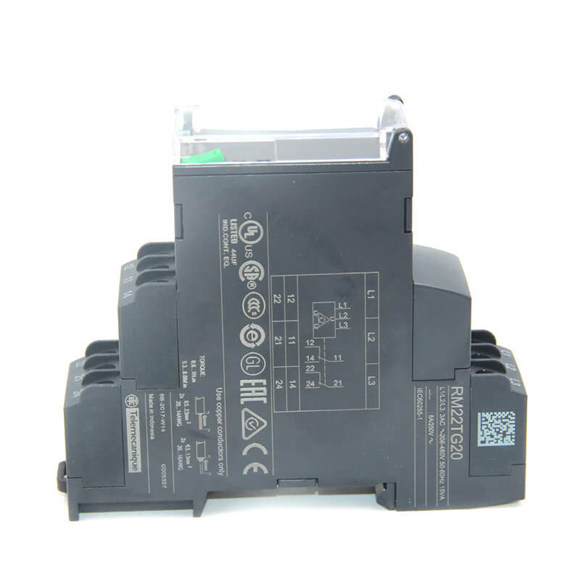

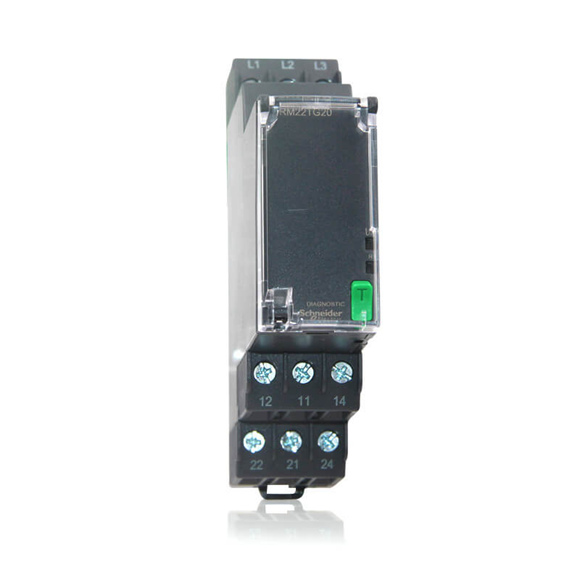

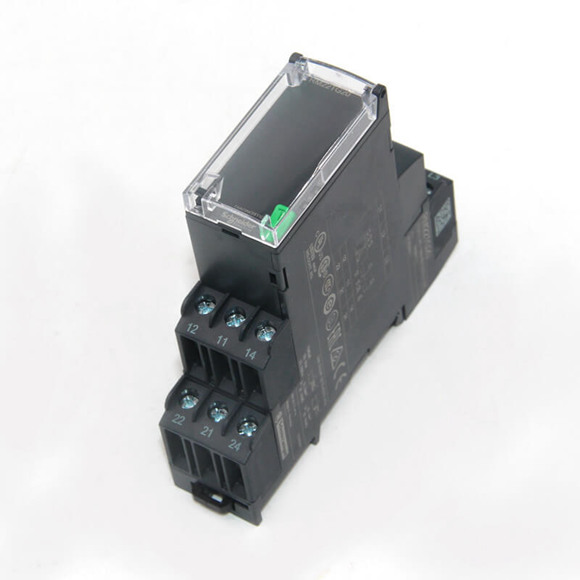

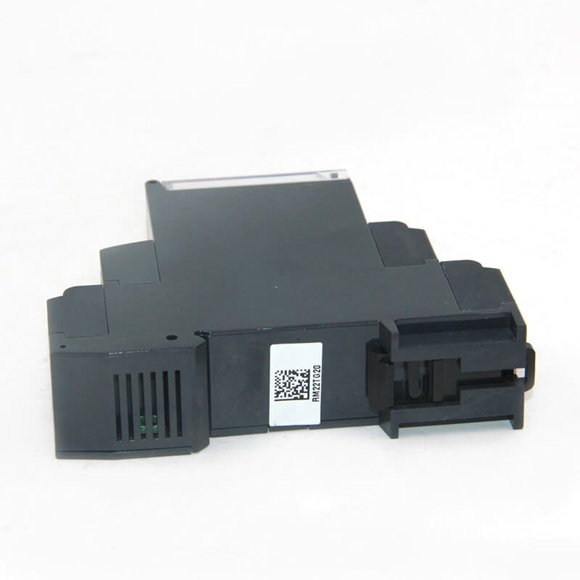

Schneider Control Relays RM22TG20
Three-Phase control relay 183…528Vac, 2 C/O
We are First Class Schneider Relays dealer and Schneider Relays distributor in China.
We can Supply All kinds Schneider Relays,such as Schneider Interface Relays,Schneider Miniature Relays,Schneider Power Relays,Schneider Timer Relays,Schneider Control Relays and Schneider Relays Socket.
100% Original and new,In stock by Schneider Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

range of product	Zelio Control
product or component type	Modular measurement and control relays
relay type	Control relay
network number of phases	3 phases
relay name	RM22TG
relay monitored parameters	Phase sequence Phase failure detection (2 or more phase cut)
time delay type	Without
switching capacity in VA	2000 VA
measurement range	183…528 V voltage AC

reset time	1500 ms at maximum voltage
maximum switching voltage	250 V AC
minimum switching current	10 mA at 5 V DC
maximum switching current	8 A AC
[Us] rated supply voltage	208…480 V AC
supply voltage limits	183…528 V AC
operating limits	183…528 V AC
power consumption in VA	15 VA at 480 V AC 60 Hz
voltage detection threshold	< 100 V AC
supply voltage frequency	50…60 Hz +/- 10 %
output contacts	2 C/O
run-up delay at power-up	650 ms
response time	<= 200 ms
overvoltage category	III conforming to IEC 60664-1 III conforming to UL 508
insulation resistance	> 100 MOhm at 500 V DC conforming to IEC 60255-27
mounting position	Any position
connections – terminals	Screw terminals, 2 x 0.5…2 x 2.5 mm² (AWG 20…AWG 14) solid without cable end Screw terminals, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16) flexible with cable end Screw terminals, 1 x 0.5…1 x 3.3 mm² (AWG 20…AWG 12) solid without cable end Screw terminals, 1 x 0.2…1 x 2.5 mm² (AWG 24…AWG 14) flexible with cable end
tightening torque	0.6…1 N.m conforming to IEC 60947-1
housing material	Self-extinguishing plastic
status LED	LED (yellow)relay ON: LED (green)power ON:
mounting support	35 mm DIN rail conforming to EN/IEC 60715
electrical durability	100000 cycles
mechanical durability	10000000 cycles
utilisation category	AC-15 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 AC-1 conforming to IEC 60947-4-1 DC-1 conforming to IEC 60947-4-1
safety reliability data	MTTFd = 924.6 years B10d = 850000
contacts material	Cadmium free
width	22.5 mm
net weight	0.09 kg
