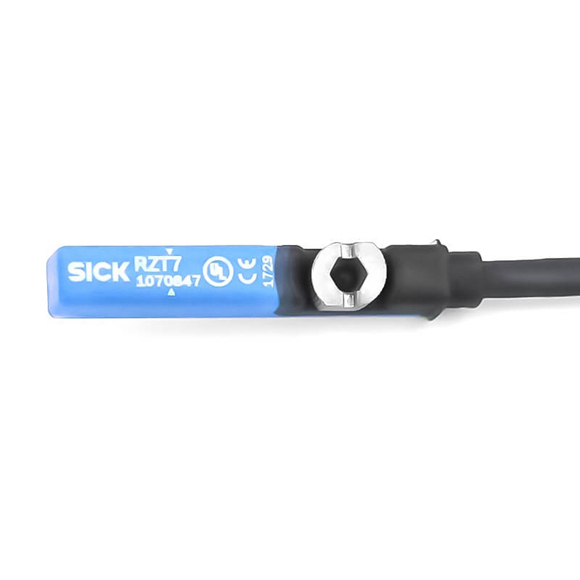

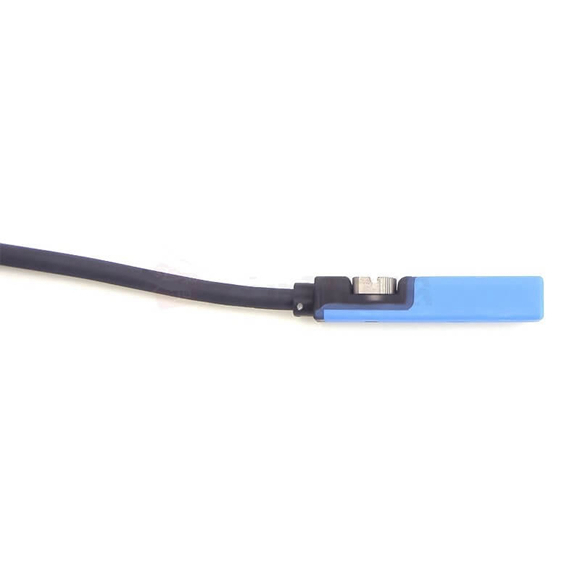

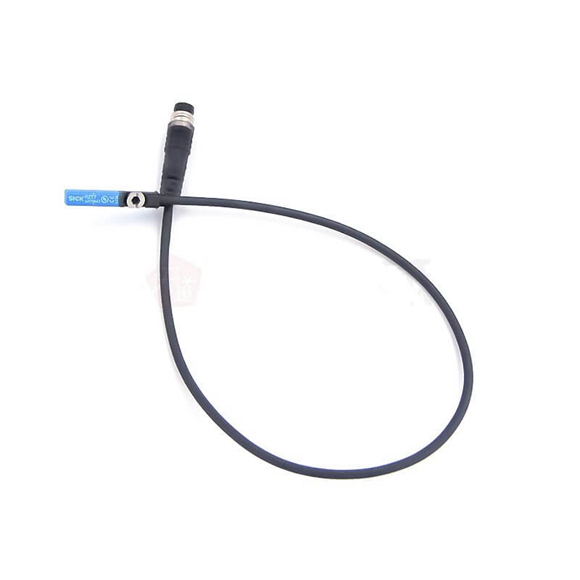

Cylinder type | T-slot | |||||||||||||
Cylinder types with adapter | Profile cylinder
Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2 |
|||||||||||||
Housing length | 29.5 mm | |||||||||||||
Switching output | Reed | |||||||||||||
Switching frequency | 400 Hz | |||||||||||||
Output function | NO | |||||||||||||
Electrical wiring | AC/DC 3-wire | |||||||||||||
Enclosure rating | IP65 1)
IP67 |
|||||||||||||
Supply voltage | 5 V AC/DC … 30 V AC/DC | |||||||||||||
Voltage drop | ≤ 0.1 V 1) | |||||||||||||
Continuous current Ia | ≤ 500 mA 2)
≤ 300 mA 3) |
|||||||||||||
Switching capacity | ≤ 6 W | |||||||||||||
Protection class | III | |||||||||||||
Response sensitivity, typ. | 3 mT | |||||||||||||
Overrun distance, typ. | 10 mm | |||||||||||||
Reproducibility | ≤ 0.1 mT 4) | |||||||||||||
Status indicator LED | ✔ | |||||||||||||
Reverse polarity protection | ✔ | |||||||||||||
Ambient operating temperature | –30 °C … +70 °C | |||||||||||||
Shock and vibration resistance | 30 g, 11 ms / 10 … 55 Hz, 1 mm | |||||||||||||
EMC | According to EN 60947-5-2 | |||||||||||||
Connection type | Cable, 3-wire, 2 m | |||||||||||||
|
