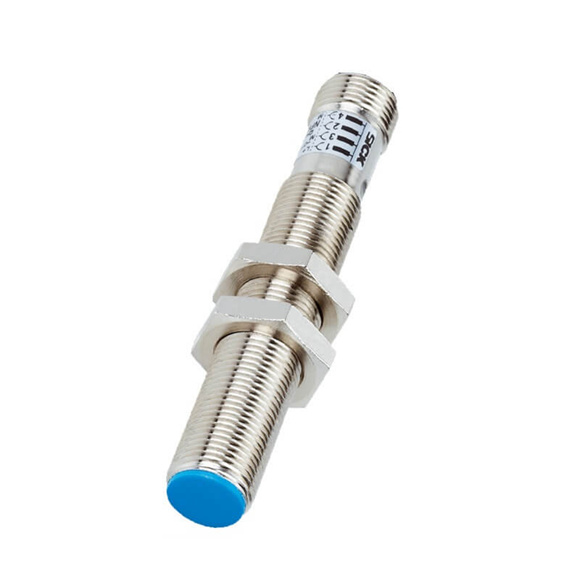

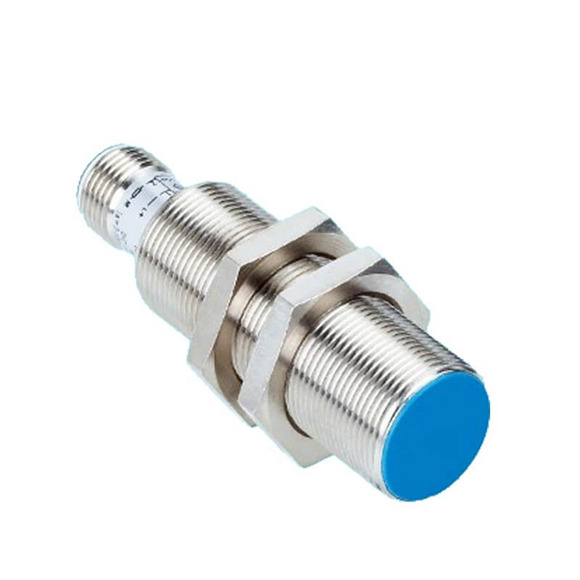

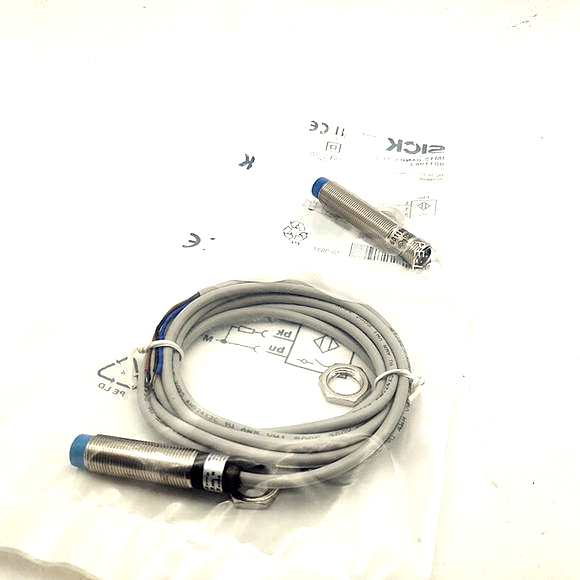

| Housing |
Cylindrical thread design |
| Housing |
Standard |
| Thread size |
M12 x 1 |
| Diameter |
Ø 12 mm |
| Sensing range Sn |
4 mm |
| Installation type |
Non-flush |
| Switching frequency |
2,000 Hz |
| Connection type |
Cable, 3-wire, 5 m |
| Switching output |
NPN |
| Output function |
NO |
| Electrical wiring |
DC 3-wire |
| Enclosure rating |
IP67 1) |
| Supply voltage |
10 V DC … 30 V DC |
| Ripple |
≤ 10 % 1) |
| Voltage drop |
≤ 1.2 V 2) |
| Current consumption |
20 mA 3) |
| Time delay before availability |
≤ 100 ms |
| Hysteresis |
2 % … 10 % |
| Reproducibility |
≤ 2 % 4) 5) |
| Temperature drift (of Sr) |
± 10 % |
| EMC |
According to EN 60947-5-2 |
| Continuous current Ia |
≤ 200 mA |
| Cable material |
PVC |
| Conductor size |
0.22 mm² |
| Short-circuit protection |
✔ |
| Reverse polarity protection |
✔ |
| Power-up pulse protection |
✔ |
| Shock and vibration resistance |
30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient operating temperature |
–25 °C … +70 °C |
| Housing material |
Brass, Nickel-plated brass |
| Sensing face material |
Plastic |
| Housing length |
50 mm |
| Thread length |
35 mm |
| Tightening torque, max. |
10 Nm |
