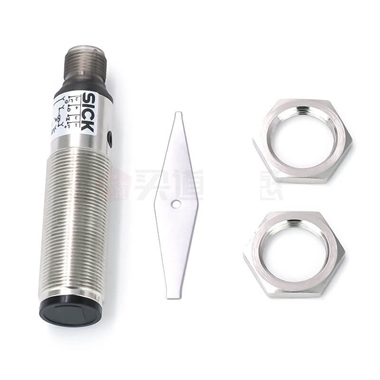

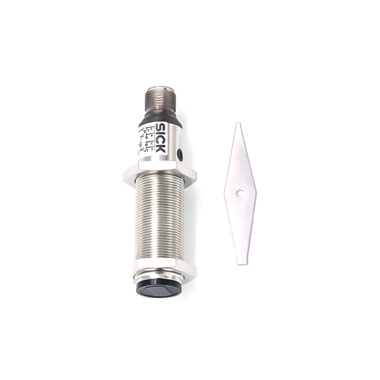

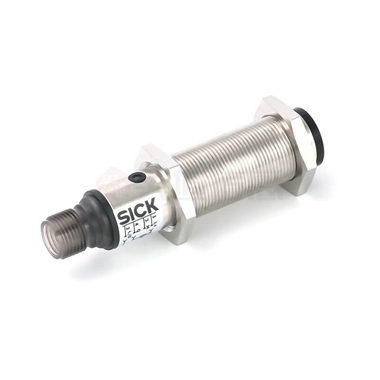

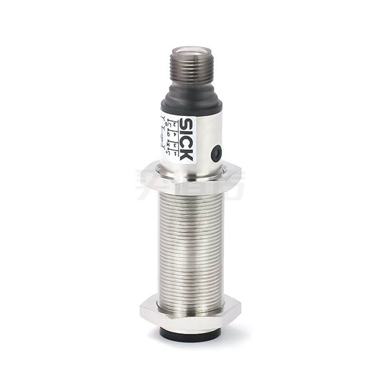

| Sensor/ detection principle | Photoelectric proximity sensor, Background blanking |
| Dimensions (W x H x D) | 18 mm x 18 mm x 78 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 78 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 3 mm … 100 mm 1) |
| Sensing range | 3 mm … 90 mm |
| Focus | 2) |
| Type of light | Infrared light |
| Light source | LED 3) |
| Light spot size (distance) | Ø 3 mm (50 mm) |
| Adjustment | Potentiometer, 270° (Sensing range) |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | ≤ 10 % 2) |
| Power consumption | 30 mA 3) |
| Switching output | NPN 4) |
| Switching mode | Light/dark switching 4) |
| Switching mode selector | Selectable via L/D control cable |
| Output current Imax. | 100 mA |
| Response time | ≤ 2 ms 5) |
| Switching frequency | 250 Hz 6) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A 7)
B 8) C 9) D 10) |
| Protection class | III |
| Weight | 120 g |
| Housing material | Metal, Nickel-plated brass |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Special feature | Focused optics |
| Ambient operating temperature | –25 °C … +70 °C |
| UL File No. | NMFT2.E175606 |
