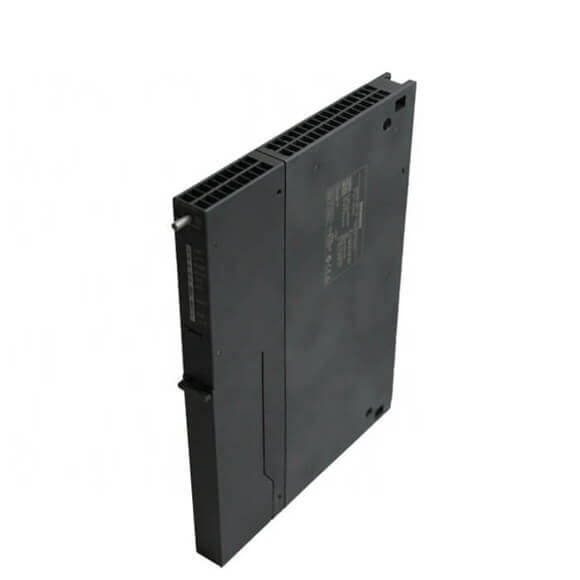

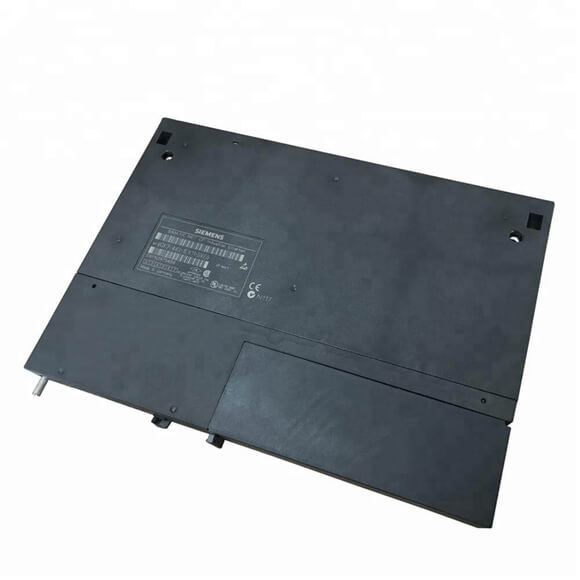

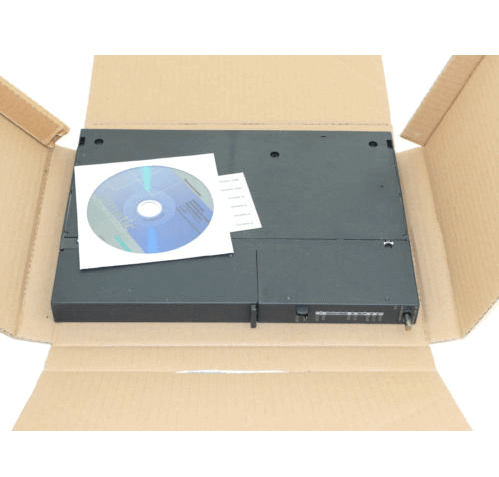

| Article number | 6GK7443-1GX30-0XE0 |
| Product type designation | CP 443-1 Advanced |
| Transfer rate | |
| Transfer rate | |
| ● at the 1st interface | 10 … 1 000 Mbit/s |
| ● at the 2nd interface | 10 … 100 Mbit/s |
| Interfaces | |
| Number of interfaces acc. To
Industrial Ethernet |
5 |
| Number of electrical connections | |
| ● at the 1st interface acc. To
Industrial Ethernet |
1 |
| ● at the 2nd interface acc. To
Industrial Ethernet |
4 |
| Type of electrical connection | |
| ● at the 1st interface acc.
to Industrial Ethernet |
RJ45 port |
| ● at the 2nd interface acc
to Industrial Ethernet
|
RJ45 port |
| design of the removable
storage C-PLUG |
Yes |
| Supply voltage, current
consumption, power loss |
|
| Type of voltage of the
supply voltage |
DC |
| Supply voltage 1 from
backplane bus |
5 V |
| Relative symmetrical
tolerance at DC |
|
| ● at 5 V | 5 % |
| Consumed current | |
| ● from backplane bus
at DC at 5 V typical |
1.8 A |
| Power loss [W] | 9 W |
| Ambient conditions | |
| Ambient temperature | |
| ● during operation | 0 … 60 °C |
| ● during storage | -40 … +70 °C |
|
● during transport |
-40 … +70 °C |
| Relative humidity | |
| ● at 25 °C without
condensation during operation maximum |
95 % |
| Protection class IP | IP20 |
| Design, dimensions
and weights |
|
| Module format | Compact module S7-400 single width |
| Width | 25 mm |
| Height | 290 mm |
| Depth | 210 mm |
| Net weight | 0.7 kg |
| Product features,
product functions, product components general |
|
| Number of units | |
| ● per CPU maximum | 14 |
| ● Note | max. 4 as PN IO ctrl. |
| Performance data
open communication |
|
| Number of possible
connections for open communication by means of SEND/RECEIVE blocks maximum |
64 |
| Amount of data | |
| ● as user data per
ISO connection for open communication by means of SEND/RECEIVE blocks maximum |
8 Kibyte |
| ● as user data per ISO on
TCP connection for pen communication by means of SEND/RECEIVE blocks maximum |
8 Kibyte |
| ● as user data per TCP
connection for open communication by means of SEND/RECEIVE blocks maximum |
8 Kibyte |
| ● as user data per
UDP connection for open IE communication by means of SEND/RECEIVE blocks maximum |
2 Kibyte |
| Number of possible connections for open communication | |
| ● by means of T blocks maximum | 64 |
| Amount of data | |
| ● as user data per ISO on
TCP connection for open communication by means of T blocks maximum |
1 452 byte |
| Performance data S7 communication | |
| Number of possible connections for S7 communication | |
| ● maximum | 128; when using several CPUs |
| ● with PG connections maximum | 2 |
| Performance data
multi-protocol mode |
|
| Number of active connections
with multi-protocol mode |
128 |
| Performance data IT functions | |
| Number of possible connections | |
| ● as client by means of
FTP maximum |
20 |
| ● as server by means of
FTP maximum |
10 |
| Number of possible connections | |
| ● as server by means of
HTTP maximum |
4 |
| ● as e-mail client maximum | 1 |
| Amount of data as user
data for email maximum |
8 Kibyte |
| Storage capacity of the user memory | |
| ● as flash memory file system | 30 Mibyte |
| ● as RAM | 16 Mibyte |
| ● additionally buffered as
RAM via central backup battery |
512 Kibyte |
| Number of possible write cycles of the flash memory cells | 100 000 |
