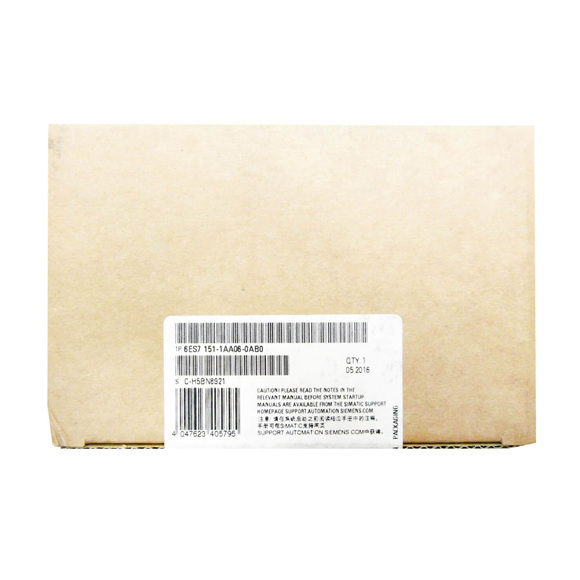

| Article number | 6ES7151-1AA06-0AB0 | 6ES7151-1BA02-0AB0 | 6ES7151-1CA00-0AB0 |
| ET200S, IM151-1 Std, 12MBit/s | ET200S, Interf.Mod. IM151-1 HF, 12MBit/s | ET200S, IM151-1 Basic, 12MBit/s | |
| General information | |||
| Product type designation | IM 151-1 ST | IM 151-1 HF | IM 151-1 Basic |
| Vendor identification (VendorID) | 806Ah | 80F3h | |
| Product function | |||
|
● Isochronous mode
|
No | Yes | No |
| Supply voltage | |||
| Mains buffering | |||
|
● Mains/voltage failure stored energy time
|
20 ms | 20 ms | No |
| Input current | |||
| from supply voltage 1L+, max. | 200 mA | 200 mA | 70 mA |
| Power loss | |||
| Power loss, typ. | 3.3 W | 3.3 W | 1.5 W |
| Address area | |||
| Addressing volume | |||
|
● Inputs
|
244 byte | 244 byte | 88 byte |
|
● Outputs
|
244 byte | 244 byte | 88 byte |
| Interfaces | |||
| Transmission procedure | RS 485 | RS 485 | RS 485 |
| Transmission rate, max. | 12 Mbit/s; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s | 12 Mbit/s | 12 Mbit/s; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s |
| PROFIBUS DP | |||
|
● Output current, max.
|
80 mA | 80 mA | |
|
● SYNC capability
|
Yes | Yes | Yes |
|
● FREEZE capability
|
Yes | Yes | Yes |
|
● Direct data exchange (slave-to-slave communication)
|
Yes | Yes | Yes |
|
● Design of electrical connection
|
9-pin sub D socket | 9-pin sub D socket | |
|
● Cable length, max.
|
1 200 m | ||
| Protocols | |||
| Supports protocol for PROFINET IO | No | No | No |
| PROFIBUS DP | Yes | Yes | Yes |
| Protocols (Ethernet) | |||
|
● TCP/IP
|
No | No | No |
| Interrupts/diagnostics/status information | |||
| Alarms | Yes | Yes | No |
| Diagnostics function | Yes | Yes | Yes |
| Diagnostics indication LED | |||
|
● Bus fault BF (red)
|
Yes | Yes | Yes |
|
● Group error SF (red)
|
Yes | Yes | Yes |
|
● Monitoring 24 V voltage supply ON (green)
|
Yes | Yes | Yes |
| Potential separation | |||
| between backplane bus and electronics | No | No | No |
| between electronic block and PROFIBUS DP | Yes | Yes | Yes |
| between supply voltage and electronics | No | No | No |
| Isolation | |||
| Isolation tested with | 500 V DC | 500 V DC | 500 V DC |
| Standards, approvals, certificates | |||
| CE mark | Yes | Yes | |
| UL approval | Yes | Yes | |
| Ambient conditions | |||
| Ambient temperature during operation | |||
|
● min.
|
0 °C | 0 °C | |
|
● max.
|
60 °C | 60 °C | |
| Dimensions | |||
| Width | 45 mm | 45 mm | 45 mm |
| Height | 119.5 mm | 119.5 mm | 119.5 mm |
| Depth | 75 mm | 75 mm | 75 mm |
| Weights | |||
| Weight, approx. | 150 g | 150 g | 150 g |
