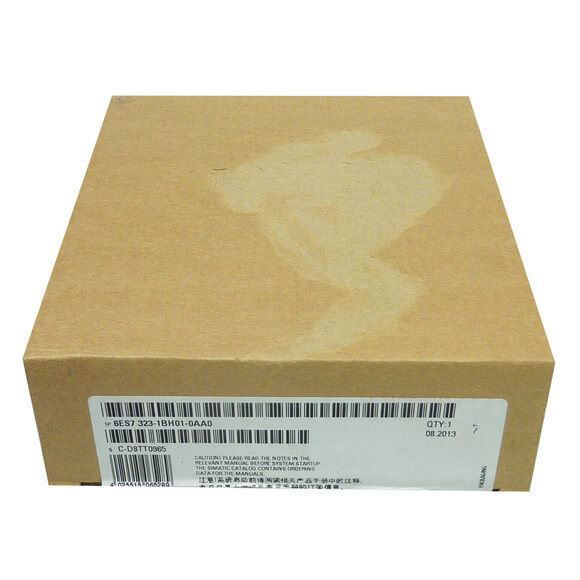

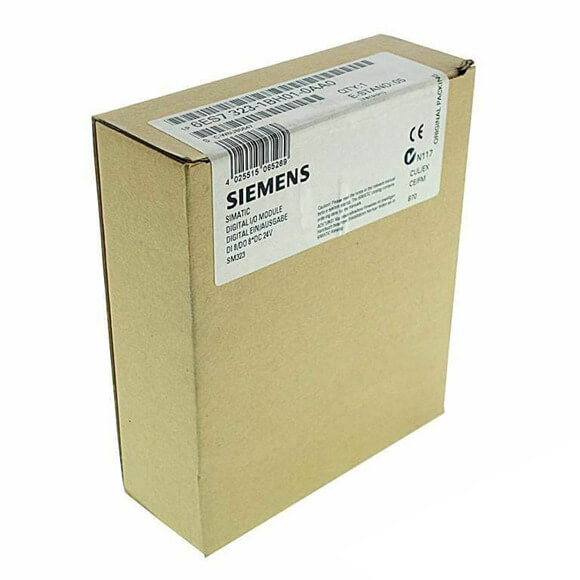

Siemens S7-300 PLCs module SM323 6ES7323-1BH01-0AA0 6ES7323-1BL00-0AA0

Siemens S7-300 PLCs module SM323 6ES7323-1BH01-0AA0 6ES7323-1BL00-0AA0

Series#: Siemens PLC

Product Details

Siemens SIMATIC S7-300 module SM323 6ES7323-1BH01-0AA0 6ES7323-1BL00-0AA0
Siemens PLC Controller Module LOGO Series
We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
100% Original and new,In stock by Siemens Automation
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Article number	6ES7323-1BH01-0AA0	6ES7323-1BL00-0AA0	6ES7327-1BH00-0AB0
	SM323, 8DI/8DO, DC24V, 0,5A	SM323, 16DI/DO, DC24V, 0,5A	SM327, 8DI/8DX, DC24V, 0,5A
Supply voltage
Load voltage L+
● Rated value (DC)	24 V	24 V	24 V
● permissible range, lower limit (DC)	20.4 V	20.4 V	20.4 V
● permissible range, upper limit (DC)	28.8 V	28.8 V	28.8 V
Input current
from load voltage L+ (without load), max.	40 mA	80 mA	20 mA
from backplane bus 5 V DC, max.	40 mA	80 mA	60 mA
Power loss
Power loss, typ.	3.5 W	6.5 W	3 W
Digital inputs
Number of digital inputs	8	16	8; 8 hard-wired, 8 others individually parameterizable
Input characteristic curve in accordance with IEC 61131, type 1	Yes	Yes	Yes
Number of simultaneously controllable inputs
horizontal installation
— up to 40 °C, max.		16
— up to 60 °C, max.	8	8	16
vertical installation
— up to 40 °C, max.	8	16	16
Input voltage
● Type of input voltage	DC	DC	DC
● Rated value (DC)	24 V	24 V	24 V
● for signal “0”	-30 to +5 V	-30 to +5 V	-30 to +5 V
● for signal “1”	13 to 30V	13 to 30V	+15 to +30 V
Input current
● for signal “1”, typ.	7 mA	7 mA	6 mA
Input delay (for rated value of input voltage)
for standard inputs
— at “0” to “1”, min.	1.2 ms	1.2 ms	1.2 ms
— at “0” to “1”, max.	4.8 ms	4.8 ms	4.8 ms
— at “1” to “0”, min.	1.2 ms	1.2 ms	1.2 ms
— at “1” to “0”, max.	4.8 ms	4.8 ms	4.8 ms
Cable length
● shielded, max.	1 000 m	1 000 m	1 000 m
● unshielded, max.	600 m	600 m	600 m
Digital outputs
Number of digital outputs	8	16	8; can also be parameterized individually as DI
Short-circuit protection	Yes	Yes	Yes
● Response threshold, typ.	1 A	1 A	1 A
Limitation of inductive shutdown voltage to	L+ (-53 V)	L+ (-48 V)	L+ (-54 V)
Controlling a digital input	Yes	Yes	Yes
Switching capacity of the outputs
● on lamp load, max.	5 W	5 W	5 W
Load resistance range
● lower limit	48 Ω	48 Ω	48 Ω
● upper limit	4 kΩ	4 kΩ	4 kΩ
Output voltage
● for signal “1”, min.	L+ (-0.8 V)	L+ (-0.8 V)	L+ (-1.5 V)
Output current
● for signal “1” rated value	0.5 A	0.5 A	0.5 A
● for signal “1” permissible range, min.	5 mA	5 mA	5 mA
● for signal “1” permissible range, max.	0.6 A	0.6 A	0.6 A
● for signal “1” minimum load current	5 mA	5 mA
● for signal “0” residual current, max.	0.5 mA	0.5 mA	0.5 mA
Output delay with resistive load
● “0” to “1”, max.	100 µs	100 µs	350 µs
● “1” to “0”, max.	500 µs	500 µs	500 µs
Parallel switching of two outputs
● for uprating	No	No	No
● for redundant control of a load	Yes; only outputs of the same group	Yes; only outputs of the same group	Yes; only outputs of the same group
